| Brand Name: | HSTECH |
| Model Number: | HS-S5331 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 pcs per month |

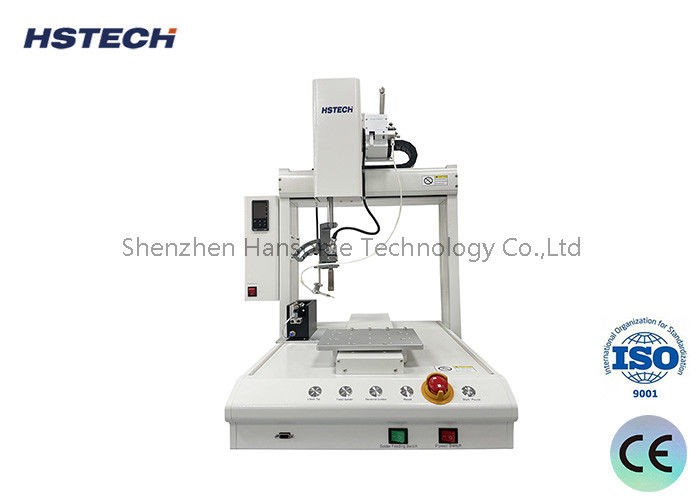

Advanced Automatic Soldering Robot for LED Strip Light and Connector Plug
Introduction
This equipment is a 4 axis single head automatic soldering machine, double Y platform, save the fixture feeding time, imporve the production efficiency. It's widely used in PCB soldering wire, charger plug,solering,connector plug,DC terminal,LED strip light soldering and other fields.
Features
1, Flexible, with the function of spot welding,drag soldering, automatic cleaning and etc.
2, With the function of position correct, position copy, array, auto-fixed location and etc, eash operating.
3, Multi-axis robot with stepper motor drive and the advanced motion control algorithm, it effectively improve the positioning accuracy and repeat precision.
4, Soldering program can be copied, save the programing time.
5, Support USB copy function, can copy the program to another machine which soldering the same product.
6, Temperatue controller can be adjustable, range from 5-500℃, high accuracy ±5℃, constant temperature,fast temperature compensation.
Specification
| Model | HS-S331 |
| Input Voltage: | AC110/220V,50/60Hz |
| Output voltage: | DC24V |
| Moving range-- X axis | 500mm |
| Y1 axis | 300mm |
| Y2 axis | 300mm |
| Z axis | 100mm |
| Speed(X/Y1/Y2/Z): | 5-800mm/sec |
| Repeat accuracy(X/Y1/Y2/Z): | ±0.02mm |
| Working load capacity: | 5kg |
| Fixture load capacity: | 3kg |
| Preheating Temp Range: | 50-500℃ |
| Program capacity: | max99 |
| Communication port: | RS232 |
| Feeding: | Single tin feeding system |
| Solder tin diameter: | 0.3-1.6mm |
| Storage extension: | support flash storage |
| Programming mode: | Wroten or teching |
| Machine dimension: | 720*580*645mm |
| Net Weight: | 65KG |
