| Brand Name: | HSTECH |
| Model Number: | GD-01 |
| MOQ: | 200 meters |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100000000 Meters per month |
Introduction
The cover tape is sealed to the carrier tape to hold the devices in the pockets. We offers a full range of cover tapes to meet various requirements.
Cover tape specification
| Name | Cover tape |
| Material | Composite material |
| Calculation unit | Meter |
| Tape width | 9.3mm |
| Tape specs | 300M per reel |
| Color | Transparent |
| Sealing pressure | 0.2Mpa |
| MOQ | 200meters |
| Cover tape | hot sealing |
| Reels | Available |
Carrier tape size and matched cover tape
| Carrier Tape(mm) | 8 | 12 | 16 | 24 | 32 | 44 | 56 | 72 | 88 | 104 |
| Cover Tape(mm) | 5.4 | 9.3 | 13.3 | 21.3 | 25.5 | 37.5 | 49.5 | 65.5 | 81.5 | 97.5 |
Features

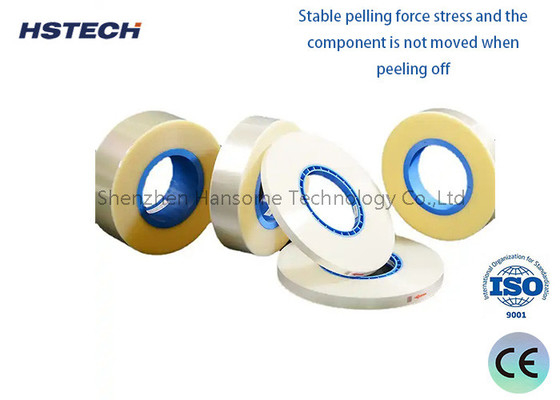

1, Stable pelling force stress, and the component is not moved when peeling off.

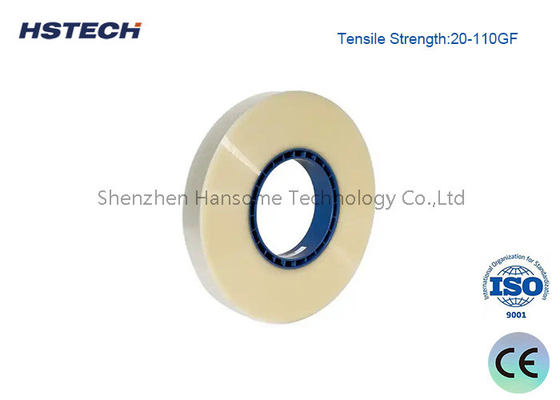

2, Tensile Strength:20-110GF
3, Transparent color, convenient for detection during sealing.
4, Multiple options for cover tape width, 5.4/9.3/13.3/21.3/25.5mm,etc.also can be custom according to the requirement.
