| Brand Name: | HSTECH |
| Model Number: | HS-M535 |
| MOQ: | 1pc |
| Price: | 25~80usd/pc |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 500pcs per month |

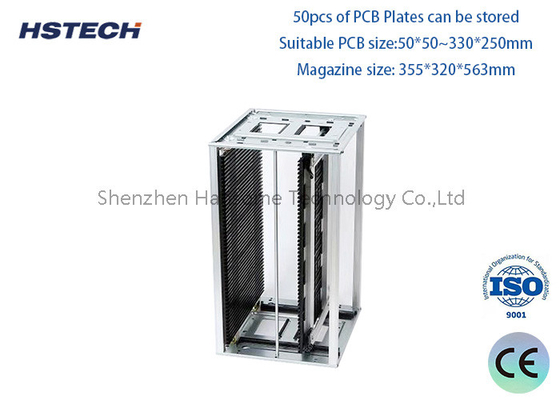

PCB Handling Equipment Precision ESD Magazine Rack for Organized and Safe PCB Storage
Introduction
This PCB magazine racks are widely used in the PCB loader and unloader machine, suitable for transport, store and manage the PCBs in the PCB fabrication factories, it's a smart PCB storage system, the magazines take small room, but it can be stackable and store the PCBs convenient and ordered. The magazines are healthy products, which is Non-toxic, odorless, moisture-proof, corrosion-resistant, also high temperature resistance, it play a big role in the warehouse and production spot.
Specification
| Overal size | 535*460*565mm,also has other options |
| Suitable PCB size | 50*50~530*390mm |
| PCB storage capacity | Max 50pcs |
| Side guid slot | Depth 3.0mm, width 5.0mm, pitch 10mm |
| Surface resistance | 105Ω-109Ω |
| Heat-resistance | 80 °C/120°C/200°C |
| Width adjustment | Gear Tracker / clips |
| Top and bottom base panel | Metal material |
| Type | Anti-static |
| Single weight | 5kg |
Features

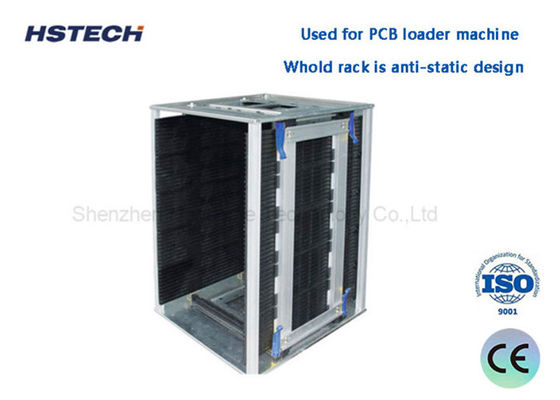

1, This product is used for PCB loader and unloader machine, collect,transport and store the PCBs in the warehouse or production room.
2, Top and bottom part using drable metal material panel, ensure the whole structure stable.
3,, The whold rack is anti-static design, max can store 50pcs PCBs.
4, Width can be adjusted via gear and fixed by the clip.
5, The rack is Non-toxic, odorless, moisture-proof, corrosion-resistant, durable,also can be stackable.
6, Stable structure, wont bent during operation, the racks also high temperature resistance.
7, Easy to install and disassembly, convenient for replacement and maintenance.
