| Brand Name: | HSTECH |
| Model Number: | TM-M-90D |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |

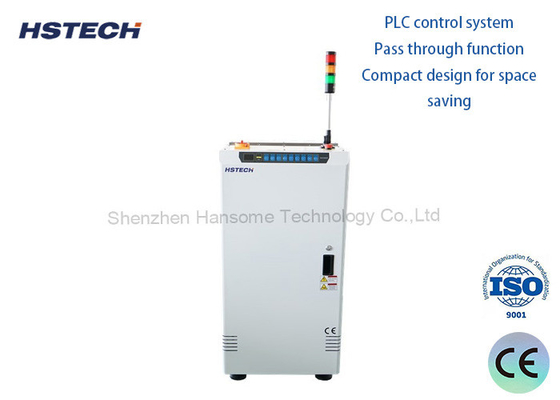

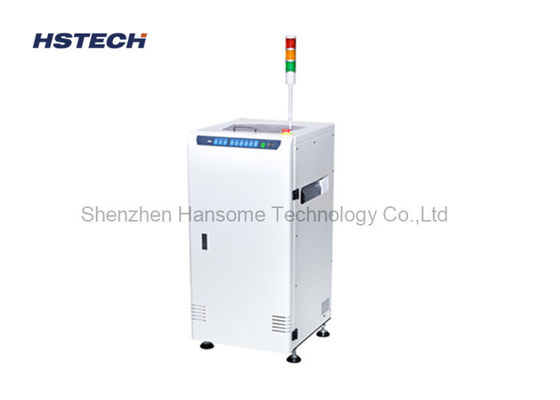

SMT production line anti-static belt type 90 degrees printed circuit board turnover processor
Introduction
This 90degree turning machine is used to change the flow direction of a PCB assembly line, it can turns to clockwise or counter-clockwise.
Specification
| Type | TM-M-90D | TM-L-90D | TM-LL-90D | TM-XL-90D |
| Size | M | L | LL | XL |
| PCB Size(mm) | 330*50*250 | 445*50*330 | 535*50*390 | 535*50*460 |
| Cycle time | 10 secs | |||
| PCB direction | left to right | |||
| Transport height(mm) | 900±20 | |||
| Power supply | AC110V,AC230V,1ph | |||
| Current | max 250A | |||
| Air pressure | 4-6bar | |||
| Air consumption | max 1.5Itr/min | |||
| Machine size(mm) | 500*560*1170 | 650*710*1170 | 800*890*1170 | 950*1080*1170 |
| Weight(kg) | 160 | 175 | 190 | 200 |
| Turning angel | used to redirect pcb flow to90 degree,180degree,or 270degree | |||
Features
1, PLC control system.
2, Enclosed design with built-in torque limiter ensures highest level of safety.
3, Rotate accurately by using motor.
4, Optical sensors installed for safety.
5, 90degree turning and pass through mode selective.
6, Standard SMEMA.
