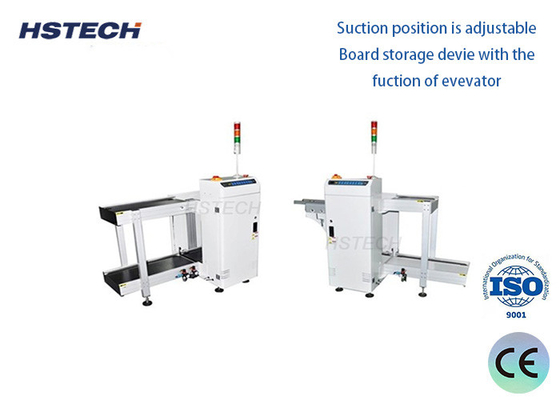

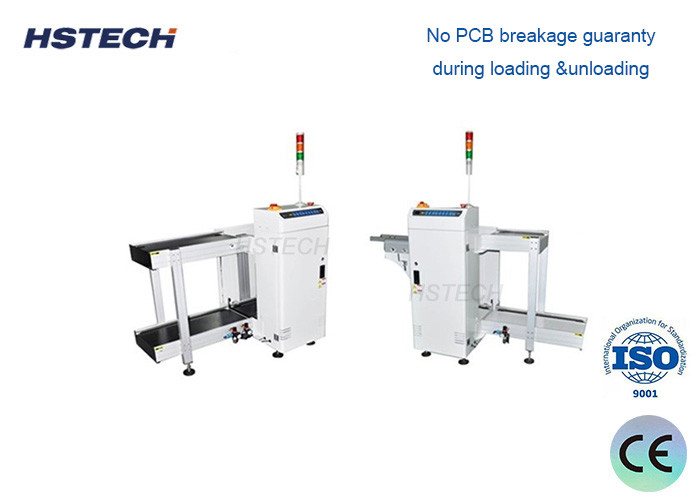

Sheet Metal SMEMA Communication Interface PCB Loader Board Handling Equipment
Application
This machine is used for the start of SMT production line, by pusing the pcbs out of the magazine to the conveyor of downstream machine.
Specification
| Model | HS-250LD | HS-330LD | HS-390LD | HS-460LD |
| Voltage | AC110V/220V,50/60Hz,single phase,max 300A | |||
| PCB dimension | (50*50)~(350*250) | (50*50)~(455*330) | (50*50)~(530*390) | (50*50)~(530*460) |
| Magazine dimension | 355*320*565 | 460*400*565 | 535*460*565 | 535*530*565 |
| Air supply | 0.4~0.6Mpa | |||
| Transport height | 920±20(mm) standard | |||
| Loading time | 6 sec | |||
| Magazine replace time | around 20 secs | |||
| Transport direction | L to R, or R to L,optional | |||
| PCB thickness | Min 0.4mm | |||
| Pitches | 1-4(10mm step) | |||
| Communication | SMEMA | |||
| Machine dimension | 1100*780*1200 | 1400*860*1200 | 1500*920*1200 | 1600*1120*1200 |
| Weight | Approx 140kg | Approx 180kg | Approx 220kg |
Approx 230kg |
Features
1, True color touch screen control
2, Mitsubishi PLC
3, Magazine capacity: top 1, bottom 1, or customized
4, Selective pitch: 10mm,20mm,30mm,40mm
5, PCB transport direction: L - R, or R - L,optional
6, Manual/Automatic run mode selection
7, Front rail fixed or rear rail fixed,optional
8, Standard height for SMT application(920±20mm)
9, Tower light display
10, SMEMA signal
