| Brand Name: | HSTECH |
| Model Number: | HS-S331R/HS-DS331R |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 pcs per month |
Advanced Automatic Soldering Robot for Semiconductor and General Consumer Goods
Introduction

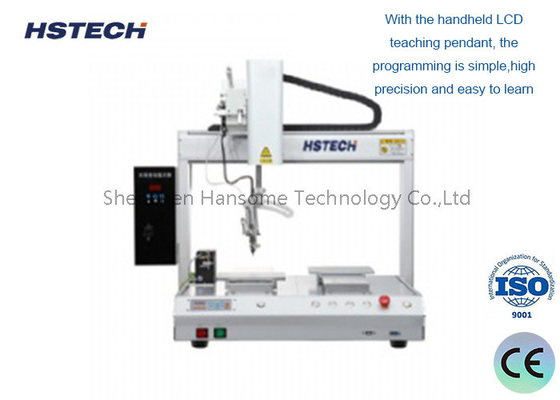

This automatic desktop type soldering machine is a hot sale product, which using the teaching box for manual programing, adopt the high quality stepper motor and timing belt to driving the machine. The machine has the options for single or doulbe working station, also the traveling range standard is 300*300mm, it can be customized to fit customer's product requirement.
Specification
| Model | HS-S331R/HS-DS331R |
| Voltage | AC110V/220V,50/60Hz |
| X/Y/Z working range | 300*300*100mm |
| R axis | 360 degree |
| X/Y/Z moving speed | max 300mm/s |
| Driven system | Stepper motor,timing belt |
| Linear guide | Taiwan brand high precison guide |
| Repeat accuracy | ±0.02mm |
| Programing | Teach pendant |
| Control system | Control board |
| Program storage |
It can store one thousand sets of processing data and a single
processing file can occupy up to 3M storage space
(five thousand processing points)
|
| File storage space |
Handheld box 256M, offline card 32M, single processing file up to
3M storage space (100,000 processing points)
|
| Document support | CAD,CorelDRAW |
| Iron Tin cleaning | Air cleaning/pneumatic |
| External interface | USB+RS232 |
| Soldering method | Point/drag soldering |
| Weight | 48kg |
| Machine dimension |
520*585*800mm |
Shenzhen Hansome Technology Co.,Ltd is a professional SMT board handling equipment (Loader,Unloader,Buffer Conveyor,Soldering Machine,Screw Fastening Machine,PCB Depaneling Machine,etc)manufacturer.We are a high-tech enterprise with independent intellectual property riahts, the company is mainly enaaged in the research and development, production and sales of SMT/THT production line board handling equipment.Our products have been exported to Europe,America,East Asia,South Asia, the middle East Asia, Africaareas and have good feedbacks.There are many customers who repurchase fromus. Our company is committed to establishing longterm friendly cooperative relationswith domestic and foreign clients on the basis of mutual benefit.
