Windows Based 4 Axis Solder Robot: Manual Programming, AC110V/220V, 50W Power
Introduction

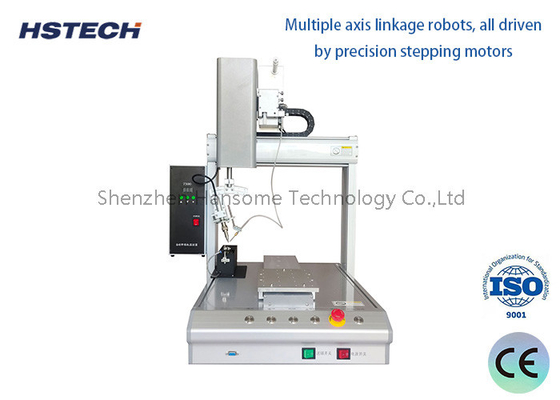

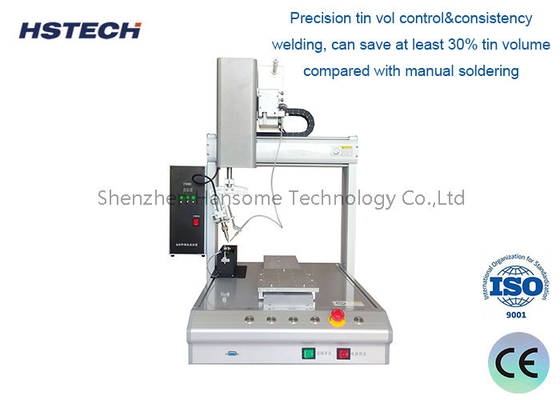

This automatic soldering machine we called it 4 axis automatic soldering machine, X,Y,Z and 360 degree Rotation axis, the machine adopt the air pressure and electricity driven, through the teachpant box for manual programing each points, then start the automatic soldering. This machine mostly use for add tins on the PCBA, or solder cables, save more labor and improve the production efficiency.
Specification
| Model | HS-S331R |
| Voltage | AC110V/220V,50/60Hz |
| X/Y/Z working range | 300*300*100mm |
| R axis | 360 degree |
| X/Y/Z moving speed | max 300mm/s |
| Driven system | Stepper motor,timing belt |
| Linear guide | Taiwan brand high precison guide |
| Repeat accuracy | ±0.02mm |
| Programing | Teach pendant |
| Control system | Control board |
| Program storage |
It can store one thousand sets of processing data and a single
processing file can occupy up to 3M storage space
(five thousand processing points)
|
| File storage space |
Handheld box 256M, offline card 32M, single processing file up to
3M storage space (100,000 processing points)
|
| Iron Tin cleaning | Air cleaning/pneumatic |
| External interface | USB+RS232 |
| Soldering method | Point/drag soldering |
| Weight | 48kg |
| Machine dimension |
520*585*800mm |
Shenzhen Hansome Technology Co.,Ltd is a professional SMT board handling equipment (Loader,Unloader,Buffer Conveyor,Soldering Machine,Screw Fastening Machine,PCB Depaneling Machine,etc)manufacturer.We are a high-tech enterprise with independent intellectual property riahts, the company is mainly enaaged in the research and development, production and sales of SMT/THT production line board handling equipment.Our products have been exported to Europe,America,East Asia,South Asia, the middle East Asia, Africaareas and have good feedbacks.There are many customers who repurchase fromus. Our company is committed to establishing longterm friendly cooperative relationswith domestic and foreign clients on the basis of mutual benefit.
