| Brand Name: | HSTECH |
| Model Number: | HS-460FL |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

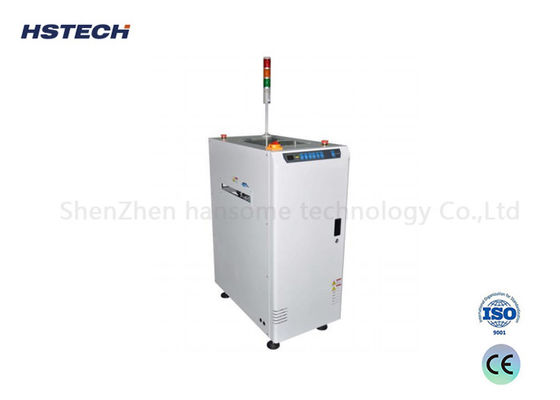

3 Color Display PCB Inverter Machine with 180degree Rotation
Features:
1, This machine used to inverter the PCB for 180degree rotation, which to finish the double side production.
2, 4 pitched selection.
3, Touch screen control and MITSUBISHI PLC.
4, 3 color light display.
5, High quality and accuracy linear guide module.
6, Flexible turnover, ball screw can connect the upper and down stream equipment smoothly.
7, Fully stainless steel machine body, durable and long lifespan.
8, SMEMA signal.
Specification:
| Machine function | 180degree PCB invertering |
| Power supply | AC100-230V, single phase, 50/60Hz |
| Transport belf | ESD 7mm belt |
| PCB dimension | (50*50)-(500*460)mm |
| Air supply | 4-6 bar,max 10L/min |
| Transport height | 900±20mm |
| Transport direction | L-R or R-L (optional) |
| PCB thickness | Min 0.4mm |
| Up/down pitches | 1-4(10mm step) |
| Recycle time | around 20 seconds |
| Communication | SMEMA |
| Machine dimension | 600*900*1200mm |
| Weight | 140kg |
