Precision PUR Jetting Valve with Flat Jet Needle and Extension Nozzle Options

Precision PUR Jetting Valve with Flat Jet Needle and Extension Nozzle Options

Principle & Control

300CC PUR Jetting Valve

1.The PUR injection valve consists of a drum heating module, a pressurized cap module, a nozzle heating module, a flow path module, a valve body module and a heat dissipation module.

2.The barrel heating module carries the barrel as well as the one-stage heating with controllable temperature. The initial heating of the gel is completed.

3.The pressurized cap module seals and pressurizes the drum and controls the output pressure through the controller.

4.The heat dissipation module dissipates heat and reduces noise from the valve body.

5.The piezoelectric injection valve adopts a modular design, the part in contact with the gel is designed as the runner module, and the part not in contact with the gel is designed as the valve body module.

6. The flow path module can be changed to meet the dispensing requirements in different applications.

7.Nozzle diameters in series (from 40µm to 500µm).

8.The nozzles are categorized into flat jet type, needle type, and extension type.

Specification

Advantages

1. The barrel heating is suitable for 30cc, 100cc, 300cc hot melt adhesive with different volume.

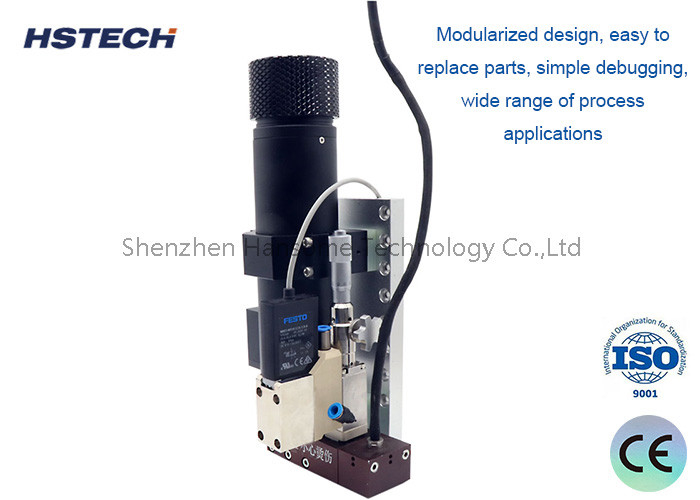

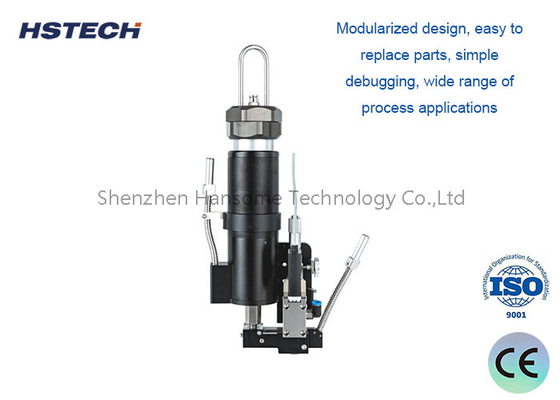

2. Modularized design, easy to replace parts, simple debugging, wide range of process applications.
3. Spray volume can be accurate to 0.3nL, spray adhesive spot consistency accuracy of up to 98%.
4. Minimum 0.17mm line width, minimum 0.15mm spot diameters of hot melt glue spraying process can be realized.
5. Can match any motion platform on the market.

Application Field

SMT/FPC/PCB,Assembly, flat panel display assembly, semiconductor packaging, LED industry, medical equipment industry,Non-marking lingerie industry.
