| Brand Name: | HSTECH |
| Model Number: | HS-S331R |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 pcs per month |

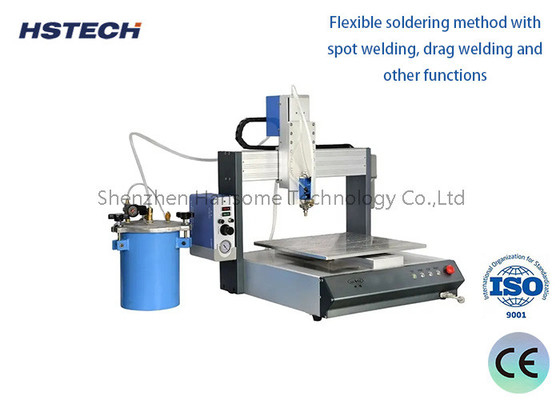

Automative Soldering Machine: Teach Box, Cleaning, Positionning
Introduction
Automatic soldering machine used for replacing the traditional manual soldering iron, by setting the programs, the machine will work automatically. The machine by customized the fixtures to fix the product need to be soldered, cause the machine is very heavy, so that can make sure the soldering accuracy.The machine with spot welding, pull welding,automatic cleaning and location corrective,reproduction,array,automatic positioning and so on. Also the machine is easy maintenance and operation, great improve the production efficiency.
Features
1, The machine its self very heavy and stable, make sure the soldering accuracy.
2, Desktop model, the operator can watch the working process very carefully.
3, The machine with automatic heating and solder wire auto feeding function.
4, 4Axis working, X/Y/Z and R rotation moving, achieve many angle soldering purpose.
5, Handheld box to setting the working programs, max can set and save 999programs.
6, The program can import directly, save the manual setting point by point.
7, The machine with automatic cleaning function, which can make the solder processing more stable, and extend the lifespan of the solderin iron.
8, With the handheld LCD teaching pendant, the programming is simple and easy to learn.
Specification
| Model | HS-S331R |
| Voltage | AC110V/220V,50/60Hz |
| X/Y/Z working range | 300*300*100mm |
| R axis | 360 degree |
| X/Y/Z moving speed | max 300mm/s |
| Driven system | Stepper motor,timing belt |
| Linear guide | Taiwan brand high precison guide |
| Repeat accuracy | ±0.02mm |
| Programing | Manual programmin with teach pendant |
| Control system | Control board |
| Program storage |
It can store one thousand sets of processing data and a single
processing file can occupy up to 3M storage space
(five thousand processing points)
|
| File storage space |
Handheld box 256M, offline card 32M, single processing file up to
3M storage space (100,000 processing points)
|
| Document support | CAD |
| Iron Tin cleaning | Air cleaning/pneumatic |
| External interface | USB+RS232 |
| Soldering method | Point/drag soldering |
| Weight | 48kg |
| Machine dimension |
520*585*800mm |
Application
1, Semiconductor products: LSI. IC. Temperature combination IC. CSP. BGA, etc.
2. Optical products: first class cameras.
3. General performance home appliances: DVD, audio equipment, automotive navigation systems, personal computers like cameras, electronic clocks and watches, PDA photocopying calculators, liquid crystal TV. Medical devices 5, precision machinery/electrical products :VTR.
4. General consumer goods: typewriters, toys, Musical Instruments, CDS, batteries, etc.
