| Brand Name: | HSTECH |
| Model Number: | HS-460BC |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

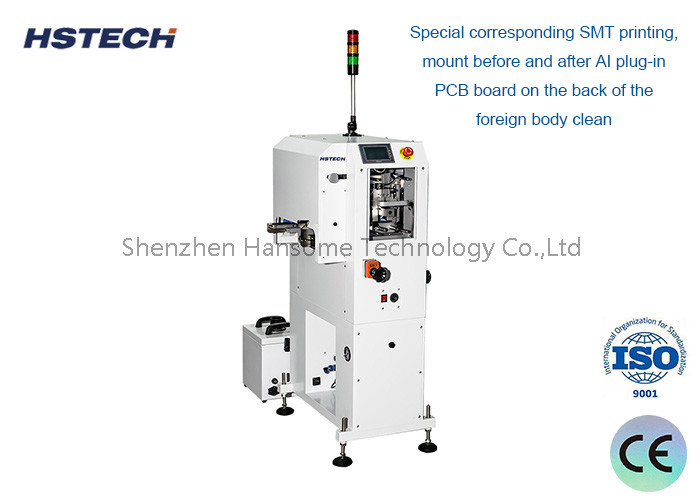

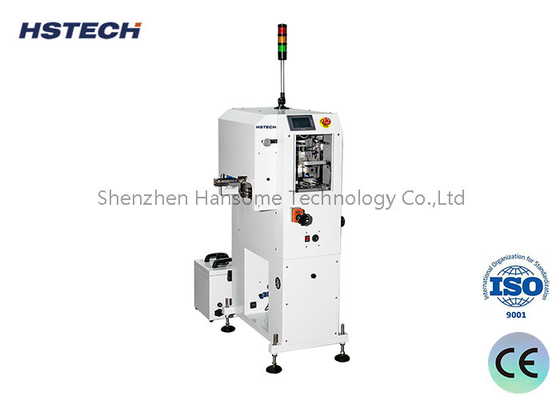

PCB Cleaning Machine PCBA Surface Dusting Machine Circuit Board Substrate Dusting and De-static Equipment
Introduction
This machine is used between PCB loader and screen printer, with brush and sticker roller to clean the dust,electricity static on the surface of the PCB.
Specification
| Model | HS-250BC | HS-330BC | HS-390BC | HS-460BC |
| PCB dimension | (50*50)~(350*250) | (50*50)~(460*330) | (50*50)~(530*390) | (50*50)~(530*460) |
| Machine dimension | 555*820*1350 | 555*900*1350 | 555*960*1350 | 555*1030*1350 |
| Weight | 80kg | 90kg | 100kg | 110kg |
| PCB thickness | 0.4~5mm |
| Power supply | AC100~230V,single phase,300A |
| Air supply | 0.4~0.6Mpa |
| Cleaning brush | top 2 pcs |
| Sticker roller | top 1 pc |
| Brush | ESD,high precision brush |
| If with dust collector | Yes |
| Transport speed | 0~9m/min,adjustable |
| Transport height | standard 900±20mm |
| Direction | L to R, or R to L,optional |
| Cycle time | Around 8s |
Features
1, Ultra-high speed anti-static spiral brush, vacuum extraction clean Method .
2, Special corresponding SMT printing, mount before and after AI plug-in PCB board on the back of the foreign body clean.
3, Equipped with the static eliminate function, completely eliminate electrostatic interference.
4, Touching clean method, cleanness above 99%.
5, Designed to clean the roller to ensure efficient, stable, lasting cleaning effect.
6, Mechanical parts draw-out design, maintenance is simple.
7, Interface display in English and Chinese, interface operation convenient and simple.
