| Brand Name: | HSTECH |
| Model Number: | HS-250BULD |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

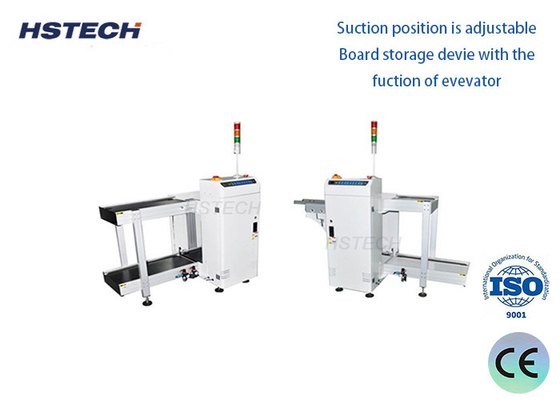

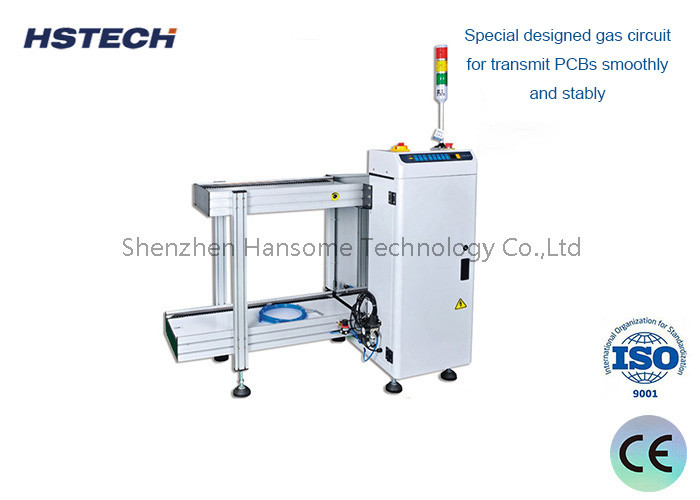

Automatic Magazine Change-over PCB Unloader Multiple Magazines Press SMT Production Line Equipment
Introduction
This units used to collect the PCBs into the magazines at the end of SMT line.
Specification
| Model | HS-250ULD | HS-330ULD | HS-390ULD | HS-460ULD |
| Voltage | AC110V/220V,50/60Hz,single phase,max 300A | |||
| PCB dimension | (50*50)~(350*250) | (50*50)~(455*330) | (50*50)~(530*390) | (50*50)~(530*460) |
| Magazine dimension | 355*320*565 | 460*400*565 | 535*460*565 | 535*530*565 |
| Magazine quantity | 3 pcs | |||
| Air supply | 0.4~0.6Mpa | |||
| Transport height | 900±20(mm) standard | |||
| Loading time | 6 sec | |||
| Magazine change over time | around 20 secs | |||
| Transport direction | L to R, or R to L,optional | |||
| PCB thickness | Min 0.4mm | |||
| Step pitch selection | 1-4(10mm step pitchs) | |||
| Communication | SMEMA | |||
| Machine dimension | 1330*765*1250 | 1920*845*1250 | 2160*910*1250 | 2160*975*1250 |
| Weight | Approx 230kg | Approx 260kg | Approx 290kg |
Approx 320kg
|
