| Brand Name: | HSTECH |
| Model Number: | HS-N100L |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

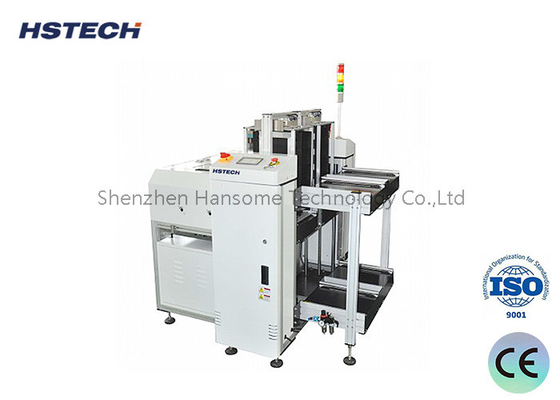

Button Control Separately Magazine Collection PCB NG / OK Unloader Equipment
Intorduction

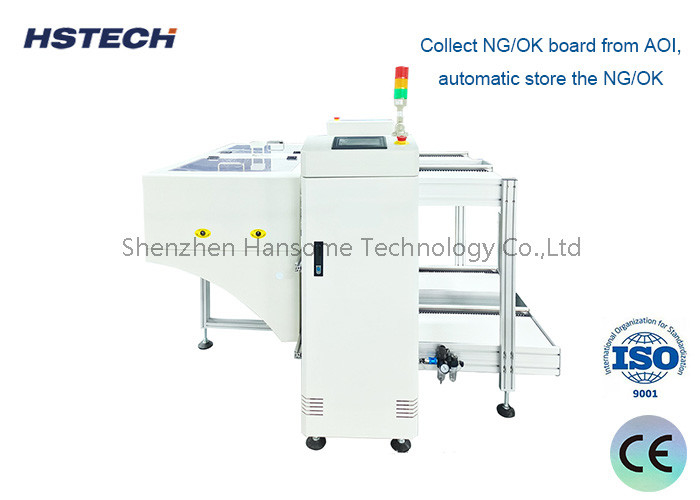

This unit is used after the AOI, by recieving the upstream AOI signal, automatic collect the NG/OK boards separately to relevant magazine.
Specification
| Model: | HS-N100M | HS-N100L | ||||||
| Voltage: | AC100V/220V, 50/60Hz | |||||||
| Size: | M | L | ||||||
| PCB Size(mm): | (50x50)~(330x250) | (50x50)~(450x330) | ||||||
| Magazine racks size(mm): | 355*320*560 | 460*400*560 | ||||||
| Magazine Qty | Upper conveyor,1 pc; bottom conveyor 1pc | |||||||
| Air supply: | 0.4~0.6Mpa,20L/Min max | |||||||
| PCB loading time: | 6 seconds, or customized | |||||||
| Transport height: | 900±20(mm) | |||||||
| Transport Direction: | L-R or R-L (optional) | |||||||
| PCB thickness: | Min 0.6mm | |||||||
| Up/down pitches: | 1-4(10mm step) | |||||||
| Communication | SMEMA signal | |||||||
| Machine Dimension(mm): | 1550*1550*1250 | 1850*1780*1250 | ||||||
| Gross Weight: | Approx 220kg | Approx 320kg | ||||||
