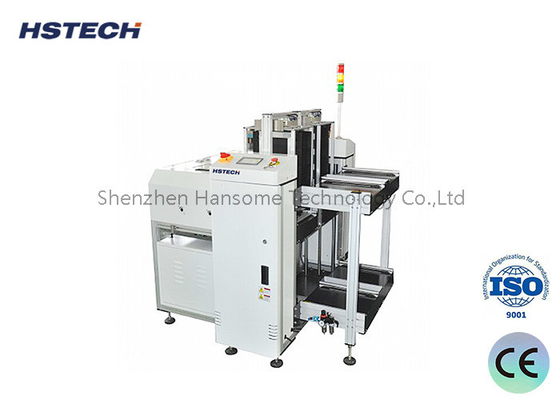

Button Control Separately Magazine Collection PCB NG / OK Unloader Equipment
Intorduction
This unit is used after the AOI, by recieving the upstream AOI signal, automatic collect the NG/OK boards separately to relevant magazine.
Features
1, PLC programing control.
2, Using friendly ‘soft touch’ LED membrane control panel
3, Selectable pitch setting.

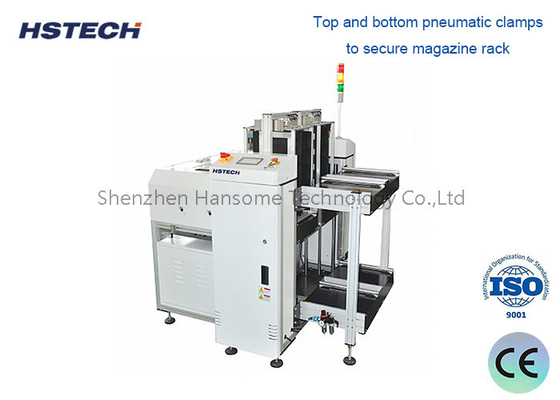

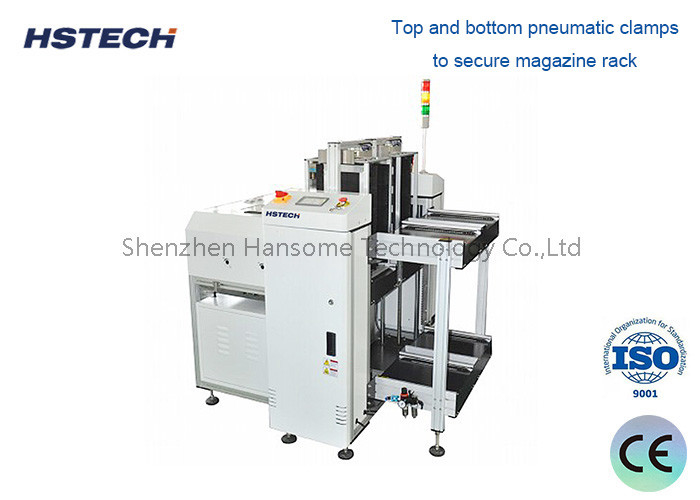

4, Toggle level clamps provided for magazine alignment.
5, Pneumatic pusher’s pressure regulated.
6, High throughput with short magazine change-over time.
7, Collect NG/OK board from AOI, automatic store the NG/OK boards.
8, Standard SMEMA communication interface.
Specification
| Model: | HS-N100M | HS-N100L | ||||||
| Voltage: | AC100V/220V, 50/60Hz | |||||||
| Size: | M | L | ||||||
| PCB Size(mm): | (50x50)~(330x250) | (50x50)~(450x330) | ||||||
| Magazine racks size(mm): | 355*320*560 | 460*400*560 | ||||||
| Magazine Qty | Upper conveyor,1 pc; bottom conveyor 1pc | |||||||
| Air supply: | 0.4~0.6Mpa,20L/Min max | |||||||
| PCB loading time: | 6 seconds, or customized | |||||||
| Transport height: | 900±20(mm) | |||||||
| Transport Direction: | L-R or R-L (optional) | |||||||
| PCB thickness: | Min 0.6mm | |||||||
| Up/down pitches: | 1-4(10mm step) | |||||||
| Communication | SMEMA signal | |||||||
| Machine Dimension(mm): | 1550*1550*1250 | 1850*1780*1250 | ||||||
| Gross Weight: | Approx 220kg | Approx 320kg | ||||||
