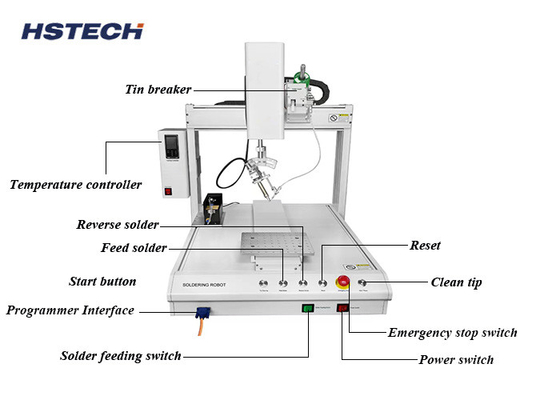

5 Axis Automatic Soldering Robot with X/Y/Z and R Rotation Moving

Taiwan Hiwin Linear Guide Solder Robot with Auto Cleaning & Iron Head Alignment

Introduction

This automatic desktop type soldering machine is a hot sale product, which using the teaching box for manual programing, adopt the high quality stepper motor and timing belt to driving the machine. The machine has the options for single or doulbe working station, also the traveling range standard is 300*300mm, it can be customized to fit customer's product requirement.

Application

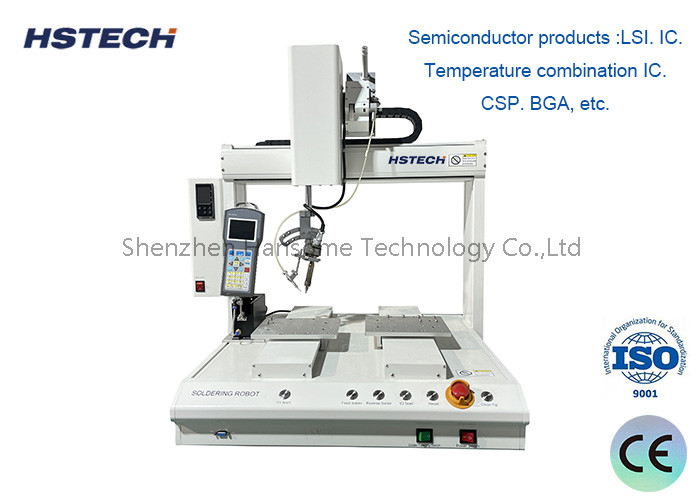

1, Semiconductor products :LSI. IC. Temperature combination IC. CSP. BGA, etc.
2. Optical products: first class cameras.
3. General performance home appliances: DVD, audio equipment, automotive navigation systems, personal computers like cameras, electronic clocks and watches, PDA photocopying calculators, liquid crystal TV. Medical devices
4. General consumer goods: typewriters, toys, Musical Instruments, CDS, batteries, etc.

5, precision machinery/electrical products :VTR.

Features

1, It's 4Axis working, X/Y/Z and R rotation moving, achieve many angle soldering purpose.
2, The machine has automatic cleaning function, the soldering iron/tip without nitrogen, very safety and environment protective,

3, Taiwan brand Hiwin linear guide used in the machine moving system, high precision and high accuracy.

4, Using very mature control board to make the machine control system, also available for using PLC.
5, Use the Iron head as the base point to align the key position of the product, press the enter key, the program will automatically generate this point in the system,then setting the data about the point and so on.
6. Using high precision stepper motor and timing belt driven system, and advanced motion control algorithms to effectively improve motion positioning accuracy and repeatability.

7, The machine with automatic cleaning function, which can make the solder processing more stable, and extend the lifespan of the solderin iron.

8, With the handheld LCD teaching pendant, the programming is simple,high precision and easy to learn.

Specification

SMT production line equipment

1. Universal SMT machine: Using the program edited by the device to mount components onto designated parts positions, it can mount SOP 28 pin or more (including components that can be mounted by high-speed machines) roll, disc, or tubular packaging components. Its characteristics are high precision and diversity, but its installation speed is inferior to high-speed machines.
2. Reflow soldering: Use SMT solder paste or red glue to set an appropriate temperature curve to complete the soldering action between the solder paste and the part.
3. Unloader: The board is loaded into the magazine through a transfer track.
4. Optical inspection instrument: Automatic optical inspection is a device based on optical principles to detect common defects encountered in welding production. AOI is a new testing technology that has only emerged in recent years, but has developed rapidly. Currently, many manufacturers have launched AOI testing equipment. When performing automatic detection, the machine automatically scans the PCB through a camera, collects images, compares the tested solder joints with qualified parameters in the database, processes the images, checks for defects on the PCB, and displays/marks the defects through a display or automatic marker for maintenance personnel to repair.
