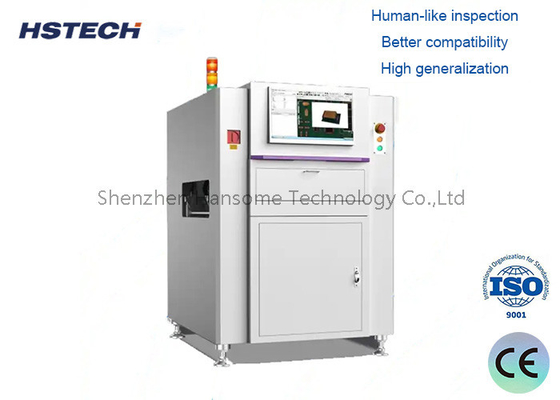

Quick Installation Fast Inspection Speed Remote Assistant Inline THT DIP AOI Before Wave Soldering
Specification
| Model | AIS300 | AIS301 |
| PCB Size | 50x50mm~430x380mm | 50x50mm~350x350mm |
| Thickness | 0.3~7.0mm | |
| Warping extent | <4mm | |
| Component height | Top 150mm, bottom 25mm | |
| Camera | 5MP,color,CCD | |
| Light source | RGB | |
| FOV | 45*37mm | |
| Resolution | 20um | |
| Inspection | ||
| Mounting components defect | Missing,rolling,offset,damage,skew,redundant,dirty. | |
| Solder defect | Excess,insufficient,bridge,no foot,missing solder,non-wetting. | |
| Other function | Bar-code,QR cod,OCR | |
| Speed | 0.23sec/fov | 0.25sec/fov |
| Software/Hardware | ||
| Operation system | Ubuntu 14.04 LTD 64bit | |
| Function | Remote control, Gerber file importing, training tool for new models | |
| Industrial PC | CPU intel i5,Independent Graphics Card,12G DDR,256SSD | |
| Display | 22 inch FHD LCD | |
| Motion | High accuracy linear actuator | |
| Power supply | AC220V,1KW | |
| Air pressure | >0.5Mpa | |
| Dimension(L*H*W) | 1100*1630*1350mm | 1100*1280*1300mm |
| Net Weight | 800kg | 700kg |
Application
This inline THT AOI used after wave soldering machine in DIP production line,it used for Correcting the wrong units, which can reduce repairs and time. The passing rate can be improved efficiently. This machine widely used for inspecting TV mainboard,PC mainboard,power board,industrial control board,Mini household electronic appliances and other PCBAs.
