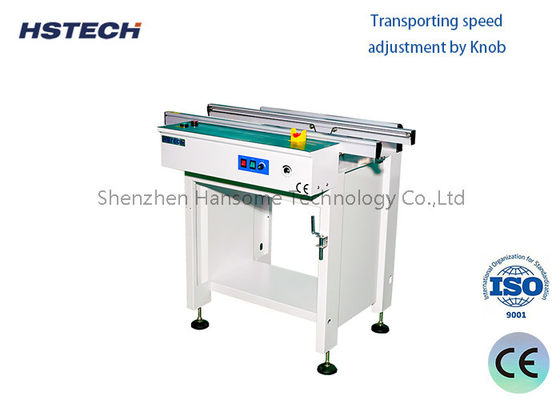

Versatile Manual Hand Crank PCB Handling Equipment with Adjustable Width Conveyor

Brand Name:	HSTECH
Model Number:	HS-460-CY
MOQ:	3 sets
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram, D/P
Supply Ability:	500 pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

SMT Conveyor

Other Name:

Link Conveyor

Color:

Blue,Grey,white

Transport Belt:

ESD Flat Belt

Belt Thickness:

1.0 Mm

Voltage:

1P AC 110V/220V 50/60HZ

Warranty:

1 Year

Packing:

Wrap, Wooden Box

Packaging Details:

Wooden box

Supply Ability:

500 pcs per month

Product Description

Versatile Manual Hand Crank PCB Handling Equipment with Adjustable Width Conveyor

Product Description

1. Reduce the standard precision screw to ensure the adjustment is narrowand stable.

2.Adopt professional wear-resistant and anti-static flat belt, and speciallymade 3.0 MM thick aluminum profile track to ensure smooth connection and

stable transportation.

3.Standard signal line connected online with other equipment.4. According to customer requirements, we can produce feeders with differentlength guide rails.

5. The working surface is equipped with anti-static rubber to better preventstatic electricity.

6.The transmission motor adopts two 42*48 stepper motors.

Specification

Model		HS-C600/HS-C1000
Power Supply		AC220V or AC110V 50/60Hz
PCB Size		5050~500390mm
Width adjustment		Hand crank
PCB Direction		Left to right or right to left
Transmission Height		900 ± 20 mm
Transmission Speed		0.5-20 meters per minute adjustable
Track fixed side		front side fixed( or back side fixed for option)

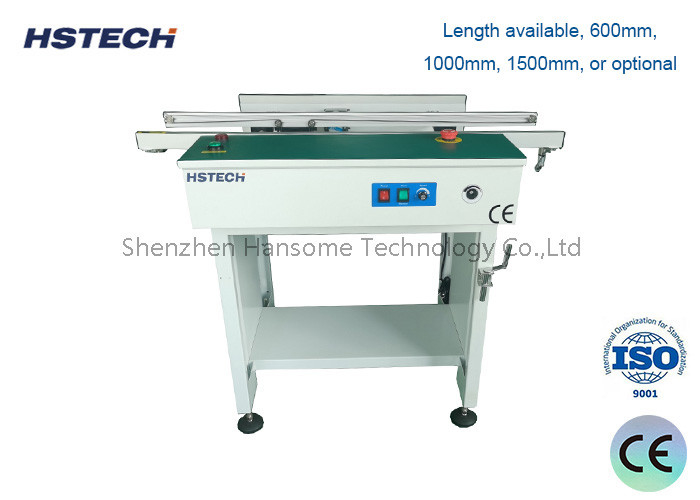

Machine Length		0.5M/0.6M/0.8M/1M/1.5M
Options		Light,Fan,Magnnifying,Cover,Inspection
