| Brand Name: | HSTECH |
| Model Number: | HS-460-CY |
| MOQ: | 3 sets |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram, D/P |
| Supply Ability: | 500 pcs per month |

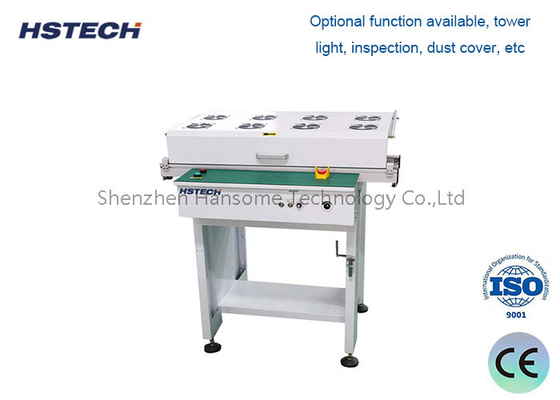

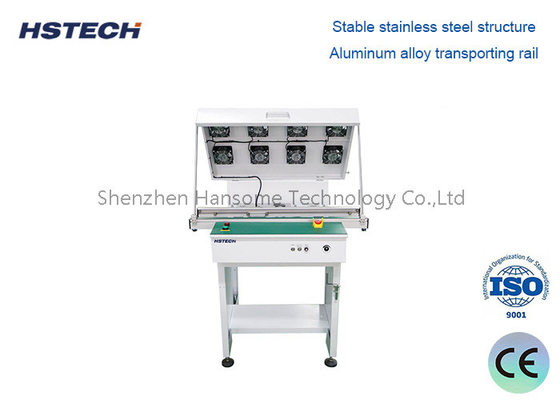

PCB conveyor with cooling fans green belt type roller type PCB buffer
Features
1. Reduce standard precision screws to ensure narrow and stable adjustment.
2. Adopting professional wear-resistant and anti-static flat belt, specially designed 3.0mm thick aluminum profile track to ensure smooth connection and smooth transportation.
3. Connect the standard signal line to other devices online.
4. According to customer requirements, we can produce feeders with different lengths of guide rails.
5. The working face adopts anti-static rubber to better prevent static electricity.
6. The transmission motor adopts two 42 * 48 stepper motors.
Specification
| Model | HS-C600/HS-C1000 | |||||
| Power Supply | AC220V or AC110V 50/60Hz | |||||
| PCB Size | 50*50~500*390mm | |||||
| Width adjustment | Hand crank | |||||
| PCB Direction | Left to right or right to left | |||||
| Transmission Height | 900 ± 20 mm | |||||
| Transmission Speed | 0.5-20 meters per minute adjustable | |||||
| Track fixed side | front side fixed( or back side fixed for option) | |||||
| Machine Length | 0.5M/0.6M/0.8M/1M/1.5M | |||||
| Options | Light,Fan,Magnnifying,Cover,Inspection | |||||
