| Brand Name: | HSTECH |
| Model Number: | HS-460-CY |
| MOQ: | 3 sets |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram, D/P |
| Supply Ability: | 500 pcs per month |

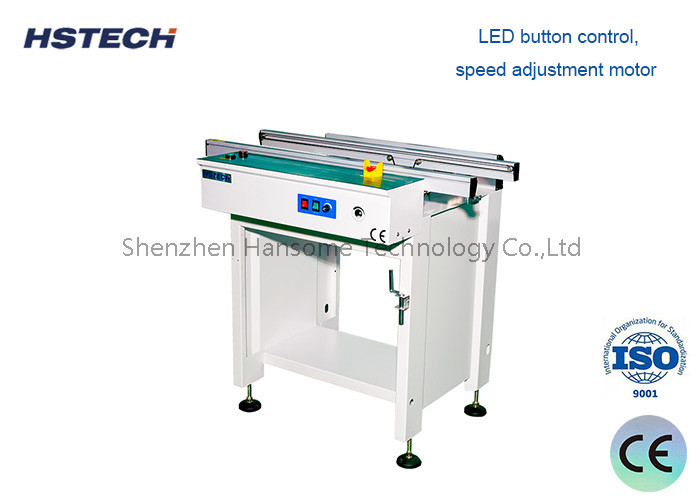

Stainless Steel Manual Hand Crank ESD Belt LED Button Width Adjustment PCB Transporting Conveyor
Used for connecting between SMT production lines, it can also be used for PCB buffering, inspection, testing, or manual insertion of electronic components.
Composition: Rack, two parallel rotating conveyor belts set on the rack, circuit boards are placed on the two conveyor belts for transportation. Existing conveyor belts are generally fixed in position on the rack, which limits the width of the circuit boards transported on the two conveyor belts and is not conducive to transporting circuit boards of different sizes. Therefore, sometimes customized transport platforms of different sizes are needed.
Specification
| Model | HS-C600/HS-C1000 | |||||
| Power Supply | AC220V or AC110V 50/60Hz | |||||
| PCB Size | 50*50~500*390mm | |||||
| Width adjustment | Hand crank | |||||
| PCB Direction | Left to right or right to left | |||||
| Transmission Height | 900 ± 20 mm | |||||
| Transmission Speed | 0.5-20 meters per minute adjustable | |||||
| Track fixed side | front side fixed( or back side fixed for option) | |||||

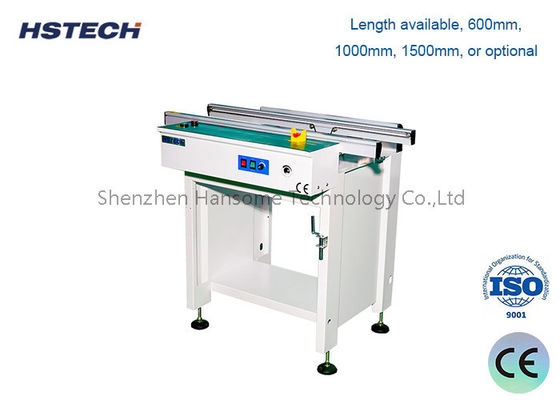

| Machine Length | 0.5M/0.6M/0.8M/1M/1.5M | |||||
| Options | Light,Fan,Magnnifying,Cover,Inspection | |||||
