| Brand Name: | HSTECH |
| Model Number: | HS-460-CY |
| MOQ: | 3 sets |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram, D/P |
| Supply Ability: | 500 pcs per month |
Adjustable Manual Hand Crank PCB Handling Equipment for Smart with Customization Options
Features
1. Stable stainless steel structure.
2. Manually adjust the width of the crane.
3. Black conveyor belt, thickness 1.0mm.
4. Aluminum alloy transport track.
5. LED button control, speed regulating motor.

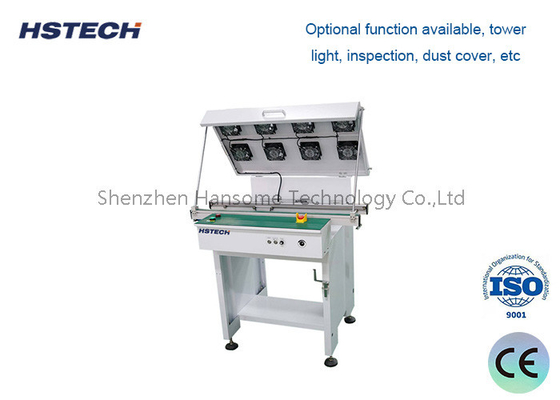

6. Optional functions include tower light, inspection, dust cover, etc.
7. Customization can be made according to customer requirements.
8. Length options available, 600mm, 1000mm, 1500mm or optional.
Specification
| Model | HS-C600/HS-C1000 | |||||
| Power Supply | AC220V or AC110V 50/60Hz | |||||
| PCB Size | 50*50~500*390mm | |||||
| Width adjustment | Hand crank | |||||
| PCB Direction | Left to right or right to left | |||||
| Transmission Height | 900 ± 20 mm | |||||
| Transmission Speed | 0.5-20 meters per minute adjustable | |||||
| Track fixed side | front side fixed( or back side fixed for option) | |||||
| Machine Length | 0.5M/0.6M/0.8M/1M/1.5M | |||||
| Options | Light,Fan,Magnnifying,Cover,Inspection | |||||
We have professional technicians & sales,relies on high-tech and tries our best tosupply high efficient and reliable board handling to our customers. At the same timeour experienced engineering team always grasps smart factory's developing direction,updates the products and technical according to the market demand, pursuit to makemore automation and cost-effective product all the time, we also do the OEM basedon different needs of our customer.
