| Brand Name: | GKG |
| Model Number: | G5 |
| MOQ: | 1 set |
| Price: | Negotiation |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

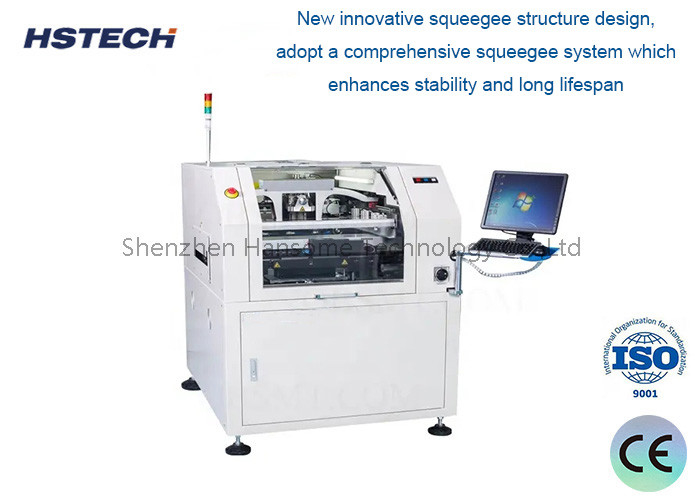

SMT Solder Paste Printer with Two Independent Motorised Printheads & 6-200mm/sec Print Speed
Specification
| Model | G5 |
| Stencil size | 370x370mm(min size) |
| 737x737mm(max size) | |
| 20-40mm(thickness) | |
| Max PCB Size | 400x340mm |
| Min PCB size | 50x50mm |
| PCB thickness | 0.4-6mm |
| PCB warpage | max 1% PCB diagonal |
| Transport height | 900±40mm |
| Transport direction | L-R,R-L |
| Transport speed | max 1500mm/s, can be adjustment |
| Transport method | One stage |
| WIdth adjustment | automatic |
| I/O interface | SMEMA |
| PCB positioning (support method) | Magnetic pin/support block/up-down table |
| PCB clamping system |
Patented over the top clamping/side clamping
|
| Print head |
Two independent motorised printheads
|
|
Squeegee Pressure
|
0.5~10Kg (Program Control)
|
|
Print Speed
|
6-200mm/sec
|
|
Print Mode
|
One /Twice
|
|
Squeegee Type
|
Rubber /steel Squeegee Blade(Angle 45°/55°/60°)
|
|
Cleaning System
|
Ireinforced vacuum absorption ,dry ,wet, vacuum three modes
|
|
CCD FOV
|
8x6mm
|
| Machine adjust range |
X: ± 3mm, Y:± 7 mm , θ:± 2°
|
| Vision |
Look Up/Down Optics Structure/CCD/Geometry Pattern-match
|
Whole Machine Specification
|
Repeat Position Accuracy
|
±0.01mm
|
|
Printing Accuracy
|
±0.025mm
|
|
Cycle Time
|
＜8 Sec
|
|
Product Changeover
|
old:<3 mins,new:<5 mins |
|
Air supply
|
4~6 kgf/cm
|
| Power supply |
AC:220±10%,50/60HZ, 2.5KW
|
| Control method | PC |
| Operation system |
Windows XP/Win7
|
|
Machine Dimensions
|
1140(L) x 1364(W) x 1404 (H)mm
|
|
Machine Weight
|
Approx: around 1000Kg |
Features
1, GKG special adjustment jacking platform. Stable and easy to adjust, it can quicklyadjust the pin jacking height of PCB with different thickness.
We have professional technicians & sales,relies on high-tech and tries our best tosupply high efficient and reliable board handling to our customers. At the same timeour experienced engineering team always grasps smart factory's developing direction,updates the products and technical according to the market demand, pursuit to makemore automation and cost-effective product all the time, we also do the OEM basedon different needs of our customer.
