| Brand Name: | GKG |
| Model Number: | G9+ |
| MOQ: | 1 set |
| Price: | Negotiation |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

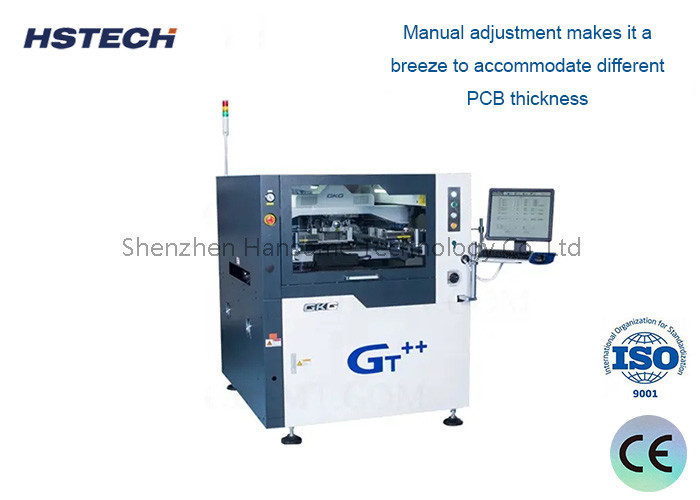

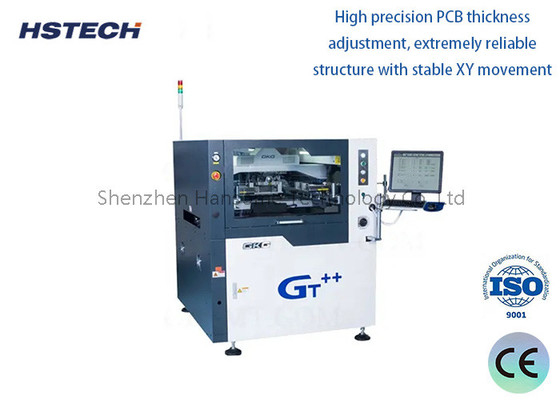

Automatic Solder Paste Printer for Industrial 4.0 MES System
Introduction
The G9+ Automatic solder paste printing machine is a high-end machine for SMT high-end application, which can satisfy the printing process requirements of 03015,0.25pitch, high precision and high speed.
Specification
| Model | G9+ |
| Max PCB Size | 450x340mm |
| Min PCB size | 50x50mm |
| PCB thickness | 0.4-6mm |
| Max board weight | 5kg |
| Transport height | 900±40mm |
| Board edge gap | 2.5mm |
| Board height | 15mm |
| Transport direction | L-R,R-L |
| Transport speed | max 1500mm/s, program control |
| Transport method | One stage |
| WIdth adjustment | automatic |
| I/O interface | SMEMA |
| PCB positioning (support method) | Magnetic pin/support block/manual up-down table |
| PCB clamping system |
Patented over the top clamping
|
| Side clamping | |
| Adsorption function | |
| Print snap-off |
0-20mm
|
|
Print mode
|
one/twice
|
|
Print Speed
|
10-200mm/sec
|
|
Print Mode
|
One /Twice
|
|
Squeegee Type
|
Rubber /steel Squeegee Blade(Angle 45°/55°/60°)
|
| Print pressure | 0.5-10kg |
| Template fram size | 470*370mm~737*737mm(20-40thickness) |
|
Cleaning System
|
Droops of rain type cleaning system
|
| Reinforced vacuum absorption | |
| Dry, wet vacuum three modes | |
| Back and forth cleaning | |
|
CCD FOV
|
10x8mm
|
| Fiducial mark types | Standard Fiducial mark shape |
| Pad | |
| Hole | |
| Camera system | Look up/down optics structure |
| CCD digital camera | |
| Geometry pattern match |
Machine Performance
| Model | G9+ |
| Repeat position accuracy | ±12.5um@6,CPK≥2.0 |
| Print accuracy | ±18um@6,CPK≥2.0 |
| Print cycle time | ＜7.5 sec |
| Based on the third party test system(CTQ) verify the actual solder paste printing position repeat precision | |
Whole Machine Specification
|
Power supply
|
AC:220±10%,50/60HZ, 3.0KW
|
|
Air pressure
|
4~6 kgf/cm²
|
|
Air consumption
|
around 5L/min
|
|
Operating temperature
|
-20℃~+45℃ |
|
Operating humidity
|
30%~60%
|
|
Machine Dimensions(without tower light) |
1172(L) x 1385(W) x 1530 (H)mm
|
|
Machine Weight
|
Approx: around 1000Kg |
Features
1, CCD digital system, total new optical path system, uniform circular light and high brightness of coaxial light source. With both light source system, brightness can adjust to an infinite loop, allowing different mart point can be easily recognize (including uneven mark point) such as tin plating, copper plating, silver plating, hot air soldering, FPC and various types of different PCB color.
Shenzhen Hansome Technology Co.,Ltd(HSTECH)is a professional professional SMT board handlingequipment(Loader,Unloader, Buffer, Conveyor,etc)manufacturer. We are a high-tech enterprise with independent intellectual propertyrights,the company is mainly engaged in the research and development, productionand sales of SMT/THT production line board handling equipment.
We have professional technicians & sales,relies on high-tech and tries our best tosupply high efficient and reliable board handling to our customers. At the same timeour experienced engineering team always grasps smart factory's developing direction,updates the products and technical according to the market demand, pursuit to makemore automation and cost-effective product all the time, we also do the OEM basedon different needs of our customer.
