Air Supply Solder Paste Machine Syringe And Standard Size 0.4Mpa Solder Paste Timer

Brand Name:	HSTECH
Model Number:	HS-SP-8
MOQ:	1 set
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	500pcs per month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Solder Paste Timer

Other Name:

Solder Paste Check Right Machine

Aging Tank:

4 Standard, 4 Springe

Timer:

Accurate LED Display

Color:

Gray

Warranty:

1 Year

Packaging Details:

Wooden package

Supply Ability:

500pcs per month

Product Description

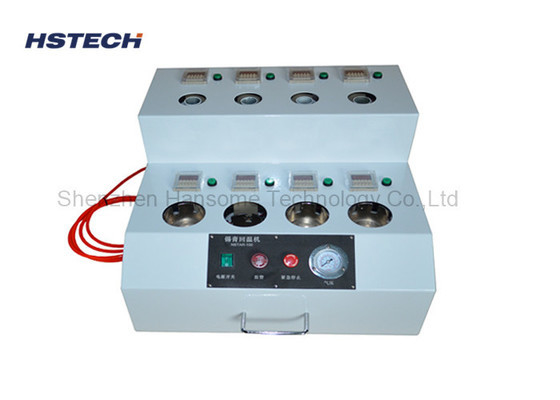

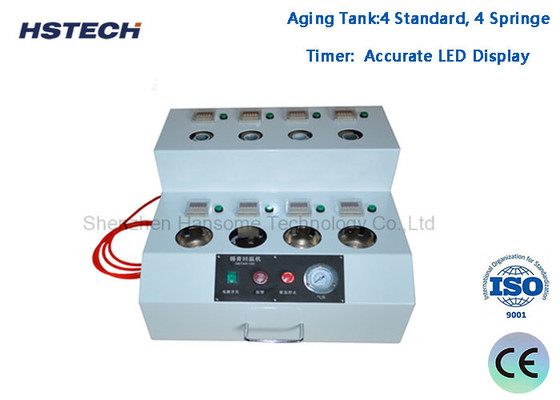

Syringe And Standard Size Solder Paste Check Right Machine with Air Supply

Introduction

This machine used to timing the solder paste back to room temperature after it taken out from the referigator, each solder paste tank equipped with a LED display timer.

Features

1, 4 tanks for the springe size solder paste and 4 tanks placed the standard size solder paste.

2, Timer for each tank is setted individual.

3, Air pressure and AC220V work combined.

4, Each tank has a individual button, press the button, the solder paste will be fixed automized, can not move before finished.

5, After finished timing, the alarm will ring to remind the operator.

6, If the timing timer is not setted right, you can press the emergency button to stop the operating.

7, The machine is stable stainless steel design, durable.

Specification

Model		HS-SP-8
Aging tank		Top for springe size, bottom for standard size
Timer		LED display timer
Tank size		For standard solder paste, others need customized
Power		AC220V, 50Hz
Air Pressure:		0.4Mpa
Placing tank:		8 tanks
Machine Demension:		500520320mm(WDH)
Gross Weight:		22KG
