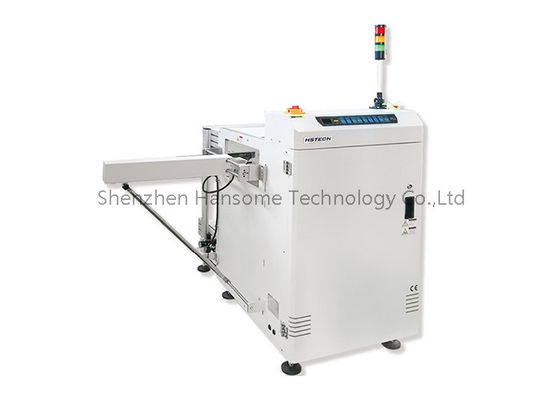

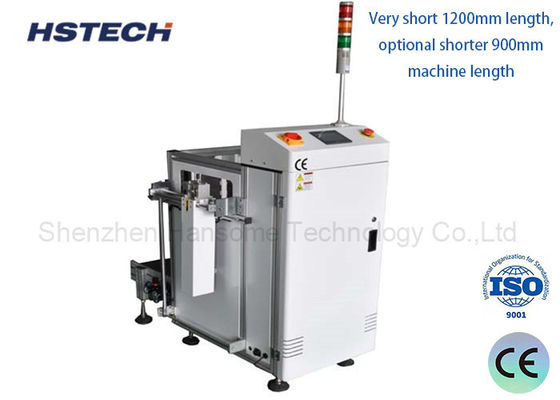

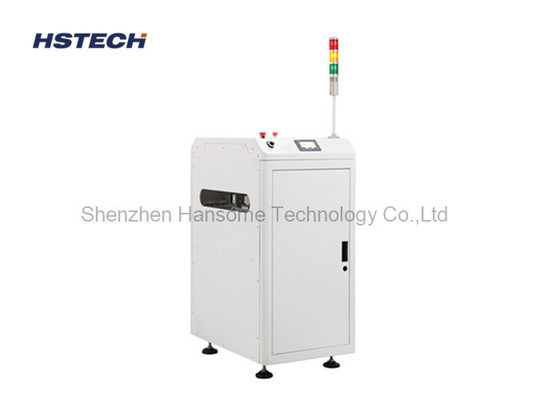

3 Color Display PCB Inverter Machine with 180degree Rotation

3 Color Display PCB Inverter Machine with 180degree Rotation
Product Overview
PCB Inverter Machine is an efficient automated equipment designed for PCB production lines. It is used to quickly and accurately flip PCB boards to meet the process requirements of double-sided mounting, testing or welding. The equipment adopts advanced control systems and mechanical structures to ensure a stable and damage-free flipping process, greatly improving production efficiency. It is an indispensable key equipment in modern electronic manufacturing.

Features:

1, This machine used to inverter the PCB for 180degree rotation, which to finish the double side production.

2, 4 pitched selection.

3, Touch screen control and MITSUBISHI PLC.

4, 3 color light display.

5, High quality and accuracy linear guide module.

6, Flexible turnover, ball screw can connect the upper and down stream equipment smoothly.

7, Fully stainless steel machine body, durable and long lifespan.

8, SMEMA signal.


Product Features
High-precision flipping
Adopting precision mechanical structure to ensure that the PCB board has no offset and vibration during the flipping process, avoiding damage to the PCB or components.
Supports PCB boards of various sizes and thicknesses, with strong adaptability.

Efficient automation
Fully automated operation, seamless connection with production lines, reducing manual intervention and improving production efficiency.
Fast flipping speed, a single flipping time only takes [X] seconds, meeting high production capacity requirements.

Intelligent control system
Equipped with PLC control system, simple operation, support parameter customization, and adapt to different production needs.
Touch screen interface, real-time monitoring of equipment operation status, automatic fault alarm, easy maintenance.

Stable and reliable
Made of high-quality materials, the structure is sturdy and durable, suitable for long-term continuous operation.
Equipped with safety protection devices to ensure the safety of operators.

Flexible adaptation
The fixture can be customized according to customer needs to support PCB boards of different sizes and shapes.
Compatible with a variety of production line configurations and easy to integrate into existing production systems.


Specification:
