| Brand Name: | HSTECH |
| Model Number: | HS-GXB-L15 |
| MOQ: | 1set |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |
Description:

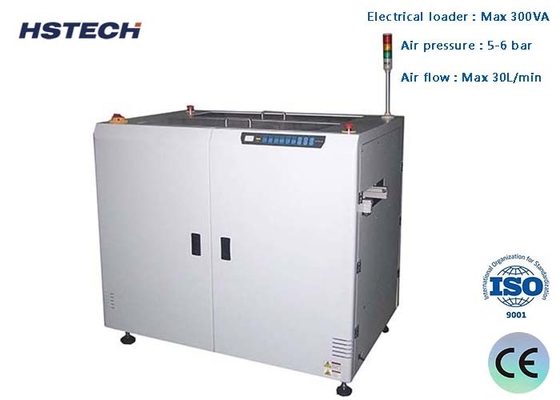

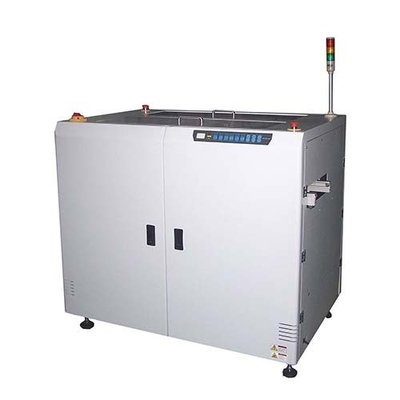

This machine is used for bare board vacuum loading, mainly for 1.5M LED PCB board.
Features:
■ Enclosed design ensure the safety operation.
■ The top side machine cover can be opened, easy for maintenance.
■ Optional button or touch screen control system.
■ Panasonic PLC.
■ Flexible suction nozzles positioning.
■ Width adjustment available(Manual)
■ Self programmed machine error display,different errors has different code,each code has relevant maintenance instruction which paste in the back side of machine door.
■ By-pass mode selectable without removing PCB stack.
■ SMEMA communication.
Technical Parameter:
| PCB store capacity | Store height 200mm, max weight less than 50kg. |
| Board loading time | Approx 10 seconds |
| Board loading method | Vacuum suction(nozzles) |
| Power supply | AC220V, single phase |
| Electrical loader | Max 300VA |
| Air pressure | 5-6 bar |
| Air flow | Max 30L/min |
| Suction nozzle qty | 8 pcs |
| Suction nozzles moving | Flexible positioning |
| Vacuum source | Vacuum generator |
| Transportation height | 910±20mm(or customized) |
| Transportation direction | L-R or R-L |
| Control mode | Button or touch screen(optional) |
| LED PCB dimension (L×W)～(L×W) | (80x80)～(1500x300) mm |
| Machine dimension (L×W×H) | 1700x950x1250 mm |
| Weight | Approx.150kg |
