| Brand Name: | HSTECH |
| Model Number: | HS-620 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

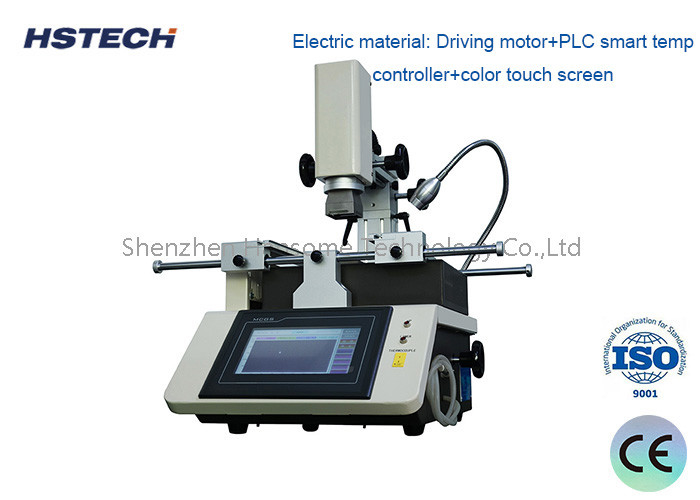

Manual & Automatic Laser Position MCGS Touch Screen Control BGA Rework Station
Specification
| BGA Rework Station | Model:HS-620 |
| Power Supply | AC 220V±10% 50/60Hz |
| Total power | 3500W |
| Heater power | Upper temp.zone 1200W,second temp.zone 1200W,IR temp.zone 2700W |
| Electric material | Driving motor+PLC smart temp.controller+color touch screen |
| Temperature | control independent temp.controller,the precision can reach ±1℃ |
| Temperature Interface | 1pcs |
| Locating way | V shape slot,PCB support jigs can adjust,laser light do fast centering and position |
| Overall dimension | L650mm*W630mm*H850mm |
| PCB size | Max 450mm*390mm Min 10mm*10mm |
| BGA size | Max 80mm*80mm Min 1mm*1mm |
| Weight of machine | 60KG |
| Usage Repair | chips / phone motherboard etc |
Features
1.Automatic&Manual operation system.
2. 5 million CCD camera optical alignment system mount precision:±0.01mm.
3.MCGS touch screen control.
4.Laser position.
5.Repair success rate 99.99%.
