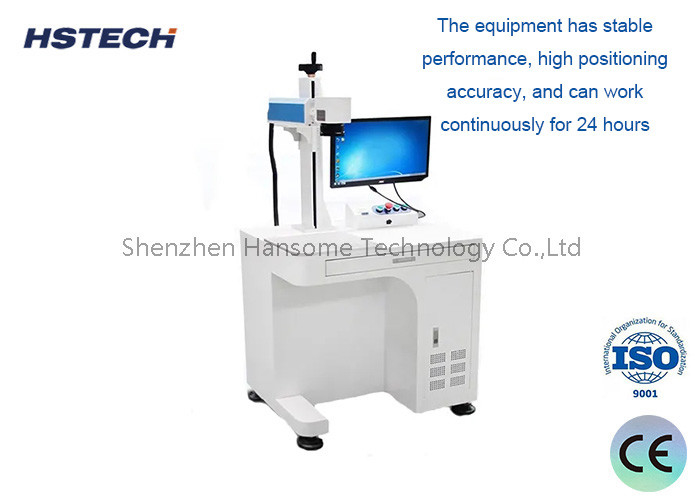

Stable Performance UV Laser Marking Machine-HS-UV3W

Stable Performance UV Laser Marking Machine-HS-UV3W

Brand Name: HSTECH
Model Number: HS-UV3W
MOQ: 1 set
Price: Negotiable
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100 sets per month
Detail Information
Place of Origin:
China
Certification:
CE
Product Name:
UV Laser Marking Machine
Warranty:
1 Year
Control:
Touch Screen
PLC:
MITSUBISHI
Relay Brand:
Schneider
Optoelectronic Switch:
OMRON
Material:
Aluminum Alloy
Condition:
New
Thickness:
0.3 - 5mm
Signal:
SMEMA
Application:
Electronic Assembly
Color:
Silver
Control System:
PLC
OEM/ODM:
Available
Total Power:
2600W
Power Supply:
AC220V
Air Pressure:
4-6bar
Mounting Accuracy:
±0.01mm
Type:
Automatic
Weight:
30KG
Packaging Details:
Wooden package
Supply Ability:
100 sets per month
Product Description

Stable Performance UV Laser Marking Machine-HS-UV3W,500Watts Power,2-4X Speed,0.003MM Accuracy



​Specification

Model HS-UV3W
Output power 3W
Laser type 3W UV laser unit
Marking area 150*150mm(Optional)
Laser point diameter <0.01mm
Laser output power 0~100% adjustable
Working frequency range 5~100KHz
Power stability <±1%rms
Laser wave length 355nm
Marking type Static marking/Dynamic marking
Marking speed 7000m/s
Min character 0.15mm
Repeat accuracy ±0.003mm
Laser unit Chinese brand/Overseas brand(optional)
Cooling type Air cooling
Power supply AC220V,60Hz,15A
Software Professional SW
Laser lifespan 20000Hrs
Machine size 900mm*680mm*1500
Machine weight 120kg



Features

1, 3,5W UV laser output power.

2, Little power consumption, energy consumption is 500 watts.

3. Using high-speed digital galvanometer, it is 2-4 times faster than normal models.

4. High marking accuracy at ±0.003MM, and the marking content coordinates can be fine-tuned.

5. The equipment has stable performance, high positioning accuracy, and can work continuously for 24 hours.

6. The equipment marking software can support AI, PLT, CAD (DXF), CDR, and other formats of vector graphics, and can be imported indirectly or directly.

7. Simple and the marking software can still be upgraded for free after guarantee.

8. Mainly used in many industries such as hardware, communication, electronics, auto parts, plastics, handicrafts, etc.

Application



Mainly used in many industries such as hardware, communication, electronics, auto parts, plastics, handicrafts, etc.
