| Brand Name: | HSTECH |
| Model Number: | HS-460-CY |
| MOQ: | 3 sets |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram, D/P |
| Supply Ability: | 500 pcs per month |

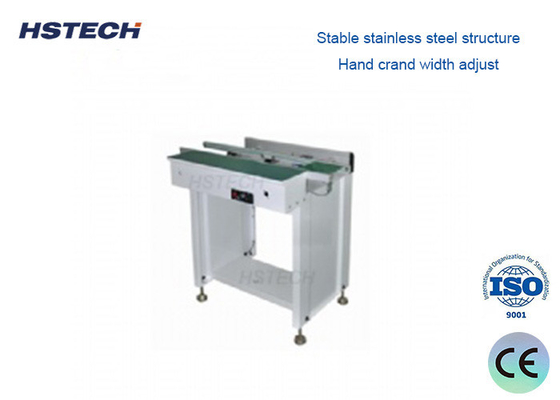

Stainless Steel Manual Hand Crank ESD Belt LED Button Width Adjustment PCB Transporting Conveyor
Features
1, Stable stainless steel structure.
2, Hand crand width adjust.

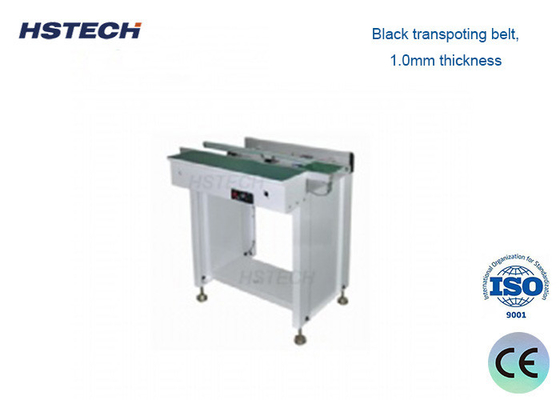

3, Black transpoting belt, 1.0mm thickness.
4, Aluminum alloy transporting rail.
5, LED button control, speed adjustment motor.
6, Optional function available, tower light, inspection, dust cover, etc.
7, Customized requirement available.
8, Length available, 600mm, 1000mm, 1500mm, or optional.
9, SMEMA signal for inline connection.
Specification
| Model | HS-C600/HS-C1000 | |||||
| Power Supply | AC220V or AC110V 50/60Hz | |||||
| PCB Size | 50*50~500*390mm | |||||
| Width adjustment | Hand crank | |||||
| PCB Direction | Left to right or right to left | |||||
| Transmission Height | 900 ± 20 mm | |||||
| Transmission Speed | 0.5-20 meters per minute adjustable | |||||
| Track fixed side | front side fixed( or back side fixed for option) | |||||
| Machine Length | 0.5M/0.6M/0.8M/1M/1.5M | |||||
| Options | Light,Fan,Magnnifying,Cover,Inspection | |||||
We have not only SMT machines and equipment, but also many machine parts.We are supplier of smt machine parts and equipment. such as Feeder,Nozzle,PCB board turnover cart,SMT grease,Solder paste mixer,SMD counter,Laser Sensor,Filter,KIC thermal profiler,Servo Motor and so on.
Shenzhen Hansome Technology Co.,Ltd(HSTECH)is a professional professional SMT board handlingequipment(Loader,Unloader, Buffer, Conveyor,etc)manufacturer. We are a high-tech enterprise with independent intellectual propertyrights,the company is mainly engaged in the research and development, productionand sales of SMT/THT production line board handling equipment.
We have professional technicians & sales,relies on high-tech and tries our best tosupply high efficient and reliable board handling to our customers. At the same timeour experienced engineering team always grasps smart factory's developing direction,updates the products and technical according to the market demand, pursuit to makemore automation and cost-effective product all the time, we also do the OEM basedon different needs of our customer.
