| Brand Name: | HSTECH |
| Model Number: | HS300-300 |
| MOQ: | 1 PC |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per week |

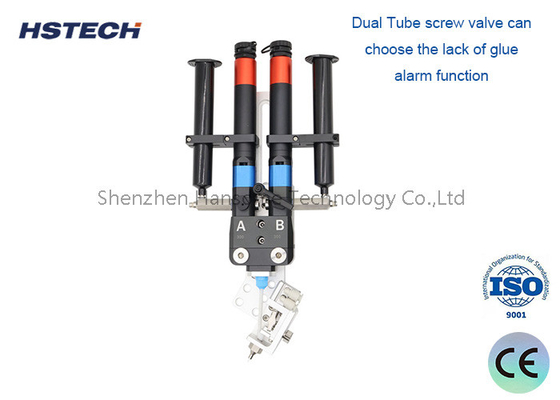

Dual Tube Screw Valve for Dispensing Two Types of Glue with 0.02ML Throughput
Working Principle
Dual Tube screw valve principle: two different kinds of glue, through the A,B two single tube screw valve in accordance with the proportion of precise glue extrusion to the mixing tube, and then through the mixing tube to the two kinds of glue mixed together, and then flow to the product for glue dispensing.
Specification
| Model | Throughput per revolution | Gluing speed | Recommended mixing ratio | Net weight of valve |
| HS300-300 | 0.02ML | 0.24ML/min~2.96ML/min | 3:1~1:1 | 约1.35kg |
| HS600-300 | 0.21ML | 1.52ML/min~17.48ML/min | 10:1 | 约1.55kg |
| HS450-450 | 0.1ML | 1.0ML/min~12ML/min | 3:1~1:1 | 约1.4kg |
| HS600-450 | 0.25ML | 1.9ML/min~22ML/min | 5:1~10:1 | 约1.575kg |
| HS700-450 | 0.65ML | 5.8ML/min~66ML/min | 5:1~10:1 | 约1.575kg |
| HS600-600 | 0.4ML | 2.8ML/min~32ML/min | 3:1~1:1 | 约1.62kg |
| HS700-600 | 0.8ML | 6.7ML/min~76ML/min | 5:1~10:1 | 约1.62kg |
| HS700-700 | 1.2ML | 10.6ML/min~120ML/min | 3:1~1:1 | 约1.62kg |
Selection conditions
1. There are particles of glue need to choose ceramic screws.
2. Different amount of glue, choose different models.
3. Dual Tube screw valve can choose the lack of glue alarm function.
4. Screw does not need to screw rotor and stator cleaning, you can directly remove the mixing tube.
