Temperature Control and Pressure Regulation Piezoelectric Jet Valve for PUR Injection

Piezoelectric Jet Valve Controller for PUR Jetting Valve HS-PF-PUR30CC-A/B​

Principle & Control

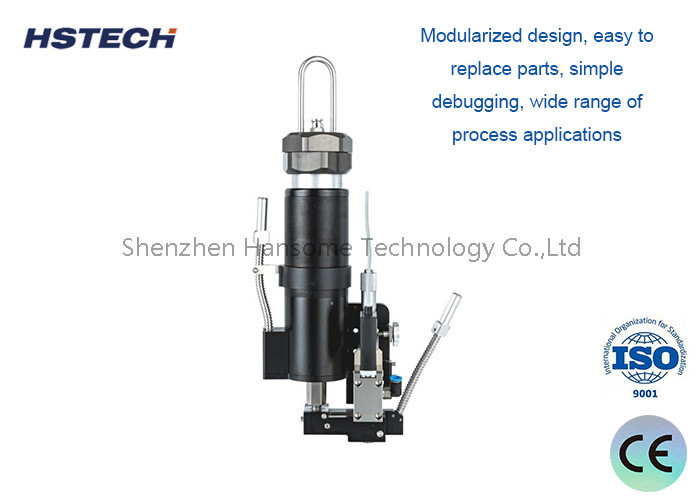

300CC PUR Jetting Valve
1.The PUR injection valve consists of a drum heating module, a pressurized cap module, a nozzle heating module, a flow path module, a valve body module and a heat dissipation module.

2.The barrel heating module carries the barrel as well as the one-stage heating with controllable temperature. The initial heating of the gel is completed.

3.The pressurized cap module seals and pressurizes the drum and controls the output pressure through the controller.

4.The heat dissipation module dissipates heat and reduces noise from the valve body.

Jet Valve Controller

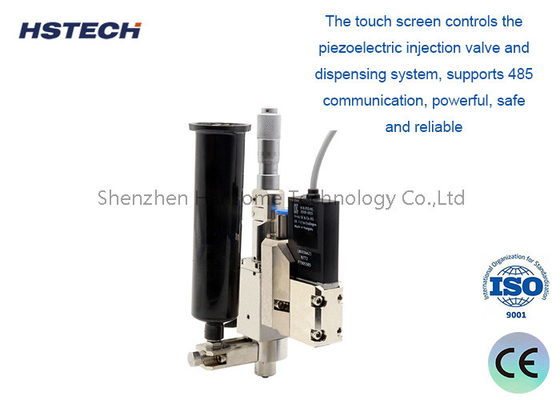

1. The touch screen controls the piezoelectric injection valve and dispensing system, supports MES communication, powerful, safe and reliable.
2. The touch screen adopts graphic control mode, the components of dispensing system and the control display function are displayed graphically, which is concise and intuitive.
3.Nozzle heating device: The nozzle is required to be heated to a suitable temperature before dispensing. The heating device adopts one-stage heating mode.
4.Heating at the nozzle maintains the constant temperature of the gel to meet the best performance of the gel. The best performance of the colloid.

Nozzle and barrel heating

1. The nozzle is required to be heated to a suitable temperature before dispensing. The heating device adopts two-stage heating mode.
2.Heating at the nozzle maintains the constant temperature of the gel to meet the best performance of the gel. The best performance of the colloid.

Specification

Application Field

SMT/FPC/PCB,Assembly, flat panel display assembly, semiconductor packaging, LED industry, medical equipment industry,Non-marking lingerie industry.
