| Brand Name: | HSTECH |
| Model Number: | HS-PF-100/200 |
| MOQ: | 1 PC |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per week |

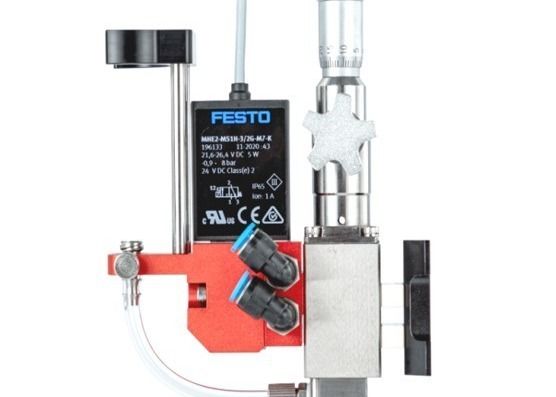

High-Speed Compact Exterior Design Jetting Valve With Touch Screen Controls HS-PF-100 HS-PF-200
Jet Valve Controller
1. The touch screen controls the piezoelectric injection valve and dispensing system, supports 485 communication, powerful, safe and reliable.
2. The touch screen adopts graphic control mode, the components of dispensing system and the control display function are displayed graphically, which is concise and intuitive.

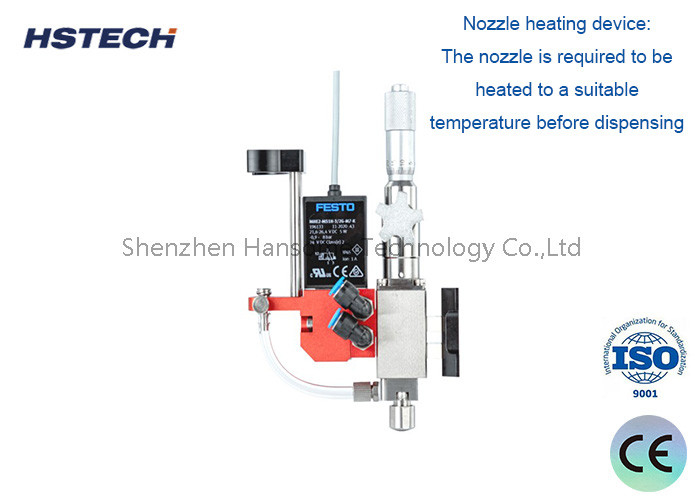

3.Nozzle heating device:The nozzle is required to be heated to a suitable temperature before dispensing. The heating device adopts one-stage heating mode.
4.Heating at the nozzle maintains the constant temperature of the gel to meet the best performance of the gel. The best performance of the colloid.
Specification
| Model | HS-PF-100/200 |
| Drive Voltage | 24V |
| Minimum Drive Air Voltage | 0.6-0.8mPa (90Psi) |
| Barrel Air Pressure | 0-0.4mPa (50Psi) |
| Valve Body Material | Aluminum |
| Fluid groove material | SUS304 |
| Piston seal | PTFE synthetic material |
| Needle Seal | PEK/PTFE/PE optional |
| Needle Material | Super Carbide |
| Nozzle Material | Super Carbide |
| Body Temperature | ≤100℃ |
| Nozzle Temperature | Room temperature～130°C |
| Dimension | 24×90×160mm |
| Body weight | 0.55kg |
| Applicable liquid |
High-speed and controlled volume dispensing of a wide range of fluids and adhesives, such as bottom filler, UV adhesive, silver paste, silicone, epoxy adhesive, surface coating adhesive, surface mount adhesive and so on. |
Application Field
Camera Module Bonding, Sensor Control Unit Bonding and Potting, Flexible Board Bonding, Main Board Underfill, Bezel Bonding, Fingerprint Key Module Bonding, Sensor Control Unit Bonding, Power Supply Potting.
