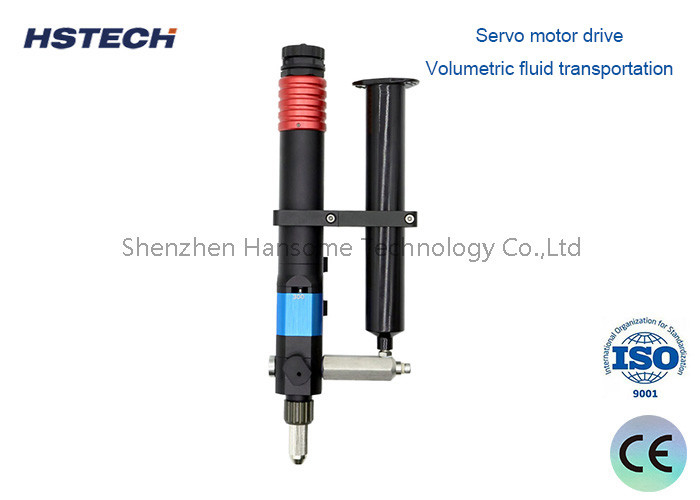

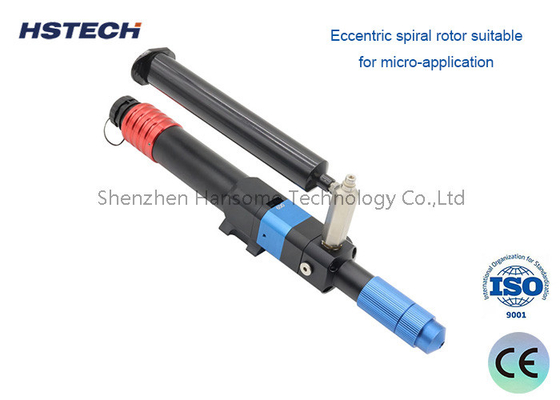

Single Tube screw valve Eccentric Screw Rotor Dispensing Valve
Machine Introduction
Single Tube screw valves are precision volumetric metering and conveying products, suitable for a variety of high-precision quantitative conveying occasions. Single-component screw pump adopts spiral structure design, screw and stator are self-sealing design, screw rotates in the stator cavity to realize quantitative conveying function. The conveying process does not produce shear effect on the medium, and does not affect the characteristics of the medium. At the same time can be reversed through the motor suction back, easy to realize the adhesive break, the perfect solution to the dispensing process of dripping, pulling the problem.
Working Principle
1. The volumetric metering and filling system of the single tube screw valve (single part screw valve) is based on the infinite piston principle, with a hermetic design between the rotor and stator, and the rotor rotating inside the stator core to achieve the quantitative delivery of the colloid for fluids of low to high viscosity of the liquid.
2. The core of each application is based on volumetric delivery metering pumps, which can ensure pressure stability and the linear characteristics of the pump, determining the relationship between pump speed, time and flow rate, so that constant material can be metered either by time or by the pump's rotational speed.
3. From low to high viscosity, abrasion resistant and highly filled fluids that are sensitive to structure, dispensing is not affected by viscosity.
Specification
| Parameter/Model | HS-300 | HS-450 | HS-600 | HS-700 |
| Throughput per revolution | 0.01ML | 0.05ML | 0.02ML | 0.06ML |
| Appearance size | L267MM,φ29MM | L294MM,φ29MM | L322MM,φ33.5MM | L322MM,φ33.5MM |
| Weight | 425g | 450g | 610g | 610g |
| Input pressure | 0-6bar | 0-6bar | 0-6bar | 0-6bar |
| Maximum output pressure | 20bar | 20bar | 20bar | 10bar |
| Volumetric flow rate | 0.12-1.48ml/min | 0.5-6.0ml/min | 1.4-16.0ml/min | 5.3-60.0ml/min |
| Applicable Colloid Viscosity | 0-1000,000cps | 0-1000,000cps | 0-1000,000cps | 0-1000,000cps |
| Minimum amount of glue | 0.001ml | 0.004ml | 0.015ml | 0.060ml |
| Working environment | 0-40℃ | 0-40℃ | 0-40℃ | 0-40℃ |
| Precision error | ±1% | ±1% | ±1% | ±1% |
| Stator material | Perfluoroether/Fluoroelastomer/Rubber | Perfluoroether/Fluoroelastomer/Rubber | Perfluoroether/Fluoroelastomer/Rubber | Perfluoroether/Fluoroelastomer/Rubber |
| Rotor material | Stainless Steel/Ceramic | Stainless Steel/Ceramic | Stainless Steel/Ceramic | Stainless Steel/Ceramic |
| Output port | Luer Fittings | Luer Fittings | Luer Fittings | Luer Fittings |
| Operating conditions | 10-40℃ | 10-40℃ | 10-40℃ | 10-40℃ |
| Repeatability | >99% | >99% | >99% | >99% |
| Minimum needle size | TT25G (ID 0.26, OD 0.51) | TT20G (ID 0.6, OD 0.91) | TT18G (ID 0.84, OD 1.27) | ID 1.0 or more |
Product Features and Advantages
High glue dispensing precision
Adopting servo motor drive and eccentric screw rod feeding, so that the glue adhesive can be continuously and stably output.
Wide range of glue viscosities and spitting volumes
Adjustment of motor speed and gas pressure can be used to dispense different glue viscosities and quickly change the amount of glue spit.
No dripping and pulling of glue
The motor reverses and sucks back, easily solving the problem of dripping and pulling of glue.
Great adaptability of stator
The stator is resistant to medium corrosion and has a long service life, which greatly reduces the user's overall cost of ownership.
Volumetric metering
True volumetric conveying, the flow rate is not affected by pressure changes.
High output pressure
Single pump output pressure ≥ 20bar
Application Fields
Automotive, Electronics, Aerospace, Renewable Energy, Food Industry, Pharmaceuticals, Biotechnology, 3D Printing
