| Brand Name: | HSTECH |
| Model Number: | HS-DS400 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

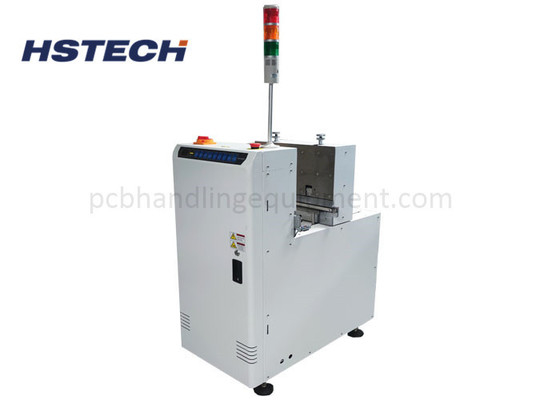

High Quality ESD Belt PCB Destacker Bare Board Loader for SMT Line
Features:
1. Mitsubishi PLC program control.
2. Easy and smart button control.
3. Manual PCB thickness adjustment.
4. Hand crank PCB width adjustment.
5. 3 color light display for machine status.
6. Aluminium structure, heavy bottom design to prevent shift.
7. Pass-through mode provided.
8. Only taken 10 seconds to change product line.
9. Uninterrupted Loading.
10. ESD transporting belt.
11. Self programmed machine error display,different errors has different code,each code has relevant maintenance instruction which paste in the back side of machine door
12. SMEMA compatible.
Application:
This machine used for loading bare PCB to smt line after received down-stream machine signal.
Specification:
|
Function |
Used for loading bare PCB to smt line after received down-stream machine signal. |
| Transport height | 910±30mm |
| Transportation direction | L~R, or R~L |
| Operation | Front operation |
| Track fixed side | Front side |
| PCB thickness | 0.6~4.0mm |
| PCB components height | ±35mm |
| PCB feeding time | Approx. 10 seconds or Specify |
| Board weight | ≤3KG |
| Power supply | 220V,50/60Hz,±10% |
| Power | 0.05kW |
| Air pressure | 0.6Mpa |
| Air consumption | <20L/min |
| Signal | SMEMA |
| Model | HS-DS400 | HS-DS530 |
| Efficient PCB length | 50~400mm | 50~530mm |
| Transport PCB width | 50~400mm | 50~500mm |
| PCB thickness | Min 0.6mm | Min 1.0mm |
| Machine dimension | 503*770*1200mm | 600*920*1200mm |
| Weight | 110kg | 130kg |
Product Details:
