| Brand Name: | HSTECH |
| Model Number: | AIS300 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |
Specification

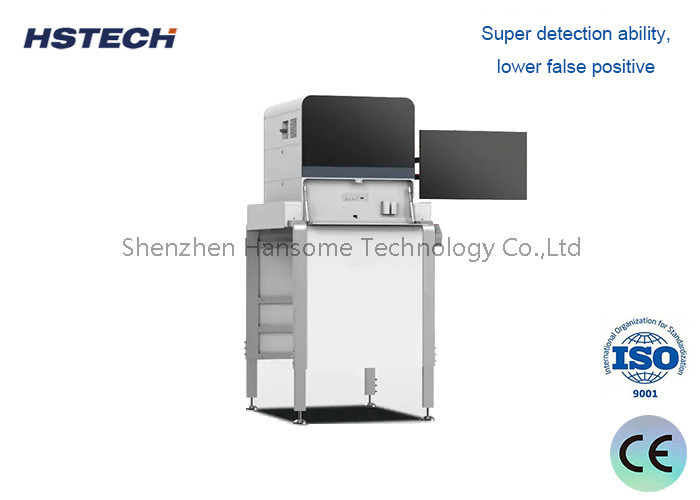

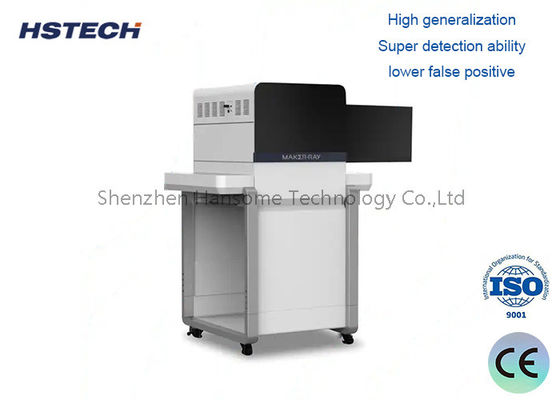

| Model | AIS300 | AIS301 |
| PCB Size | 50x50mm~430x380mm | 50x50mm~350x350mm |
| Thickness | 0.3~7.0mm | |
| Warping extent | <4mm | |
| Component height | Top 150mm, bottom 25mm | |
| Camera | 5MP,color,CCD | |
| Light source | RGB | |
| FOV | 45*37mm | |
| Resolution | 20um | |
| Inspection | ||
| Mounting components defect | Missing,rolling,offset,damage,skew,redundant,dirty. | |
| Solder defect | Excess,insufficient,bridge,no foot,missing solder,non-wetting. | |
| Other function | Bar-code,QR cod,OCR | |
| Speed | 0.23sec/fov | 0.25sec/fov |
| Software/Hardware | ||
| Operation system | Ubuntu 14.04 LTD 64bit | |
| Function | Remote control, Gerber file importing, training tool for new models | |
| Industrial PC | CPU intel i5,Independent Graphics Card,12G DDR,256SSD | |
| Display | 22 inch FHD LCD | |
| Motion | High accuracy linear actuator | |
| Power supply | AC220V,1KW | |
| Air pressure | >0.5Mpa | |
| Dimension(L*H*W) | 1100*1630*1350mm | 1100*1280*1300mm |
| Net Weight | 800kg | 700kg |
About Packaging
Shenzhen Hansome Technology Co.,Ltd(HSTECH)is a professional professional SMT board handlingequipment(Loader,Unloader, Buffer, Conveyor,etc)manufacturer. We are a high-tech enterprise with independent intellectual propertyrights,the company is mainly engaged in the research and development, productionand sales of SMT/THT production line board handling equipment.
We have professional technicians & sales,relies on high-tech and tries our best tosupply high efficient and reliable board handling to our customers. At the same timeour experienced engineering team always grasps smart factory's developing direction,updates the products and technical according to the market demand, pursuit to makemore automation and cost-effective product all the time, we also do the OEM basedon different needs of our customer.
