| Brand Name: | HSTECH |
| Model Number: | NS-600 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 500 sets per month |

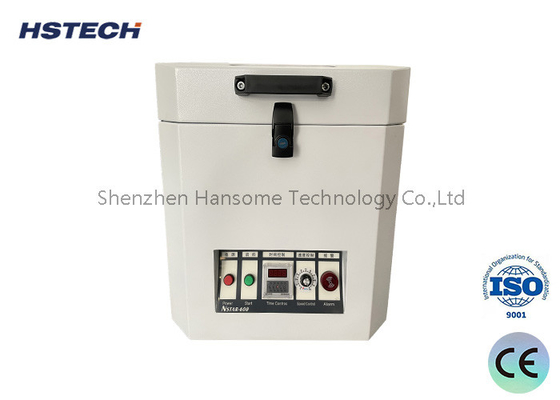

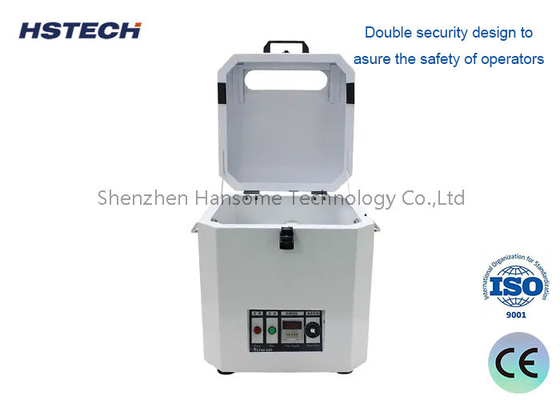

SMT Line Use Digital Display Solder Paste Mixer with High-Speed Rotation
Introduction
The revolution of the centrifugal force generated by automatic paste mixer,the force produced by the rotation of the rotating shaft and the angle of 45 degrees.The tank is located in the upper end of the paste continuous downward movement, at the bottom of the pipe to the tank above the paste around the movement, the formation of a tornado funnel type stirring action, make a smooth paste mixing and softening, deaeration reach the proper viscosity after mixing paste has good wettability, diffusion uniformity, excellent printing effect, to achieve the best performance of reflow soldering.
| Model: | NSTAR-600 | |||
| Wattage: | 60W | |||
| Power: | AC220V, 50Hz | |||
| Roating speed: | Primary rotating:1400RPM;Sencond rotating:400RPM | |||
| Working Capacity: | 500g*2jar; | |||
| Tin Pot's Size: | M diameterΦ60-Φ67standard one S diameterΦ53-Φ60(for choose, please contact us ) L diameterΦ67-Φ74(for choose, please contact us) |
|||
| Time Setting: | 0.1～9.9mins, adjust0.1min per time; 10～30mins, adjust1.0min per time |
|||
| Display & Caution: | LED digital display,light blink and buzzer warning | |||
| Machine Demension: | 410*410*490mm(W*D*H) | |||
| Packing Demension: | 420*420*500mm(W*D*H) | |||
| Net/Gross Weight: | 40KG/45KG | |||
We have not only SMT machines and equipment, but also many machine parts.We are supplier of smt machine parts and equipment. such as Feeder,Nozzle,PCB board turnover cart,SMT grease,Solder paste mixer,SMD counter,Laser Sensor,Filter,KIC thermal profiler,Servo Motor and so on.
