| Brand Name: | HSTECH |
| Model Number: | HS-330BF |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

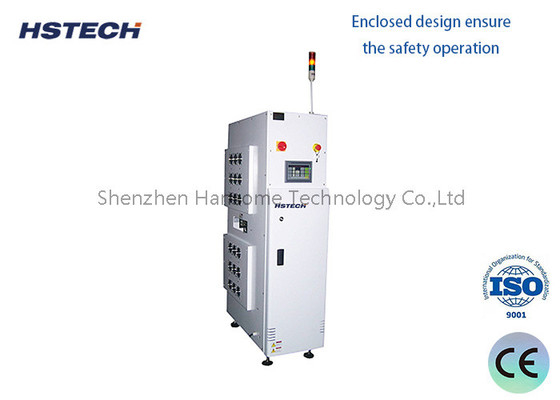

Touch Screen Control 4 Groups Coolers Tower Light Display PCB Buffer Machine
Introduction
This PCB buffer machine is a smart board buffering equipment, it has 25 layers to store the PCBs, each layer has its individual
signal, and each layer has named a number, when the downstream machine give signal to layer number, the buffer will accept the
signal ans give order to the layer, then automatic select and transport the PCBs to the downstream machine.
Features
1, Panasonic PLC control.
2, Smart touch screen control panel.
3, With FIFO and By-pass function, or cutomized to multiple function.
4, Using servo motor for accuracy positioning.
5, Hiwin leadscrew for width adjustment, smooth and stable.
6, Smooth magazine lifting device, precision servo driving.

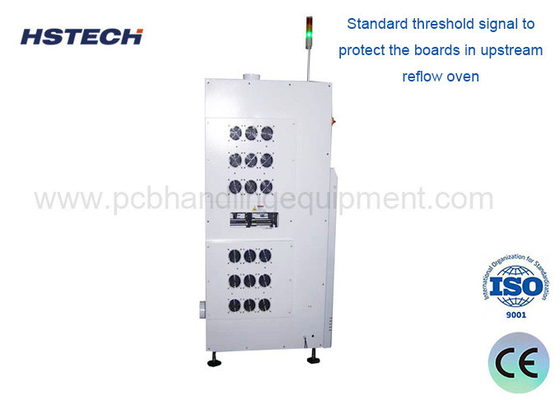

7, Optional fan and exhaust port for heat dessipation.
8, English operation interface.
9, The whole machine is small volume, won't take much factory space.
10, SMEMA communication interface, can be connected with other automation equipment.
11, Three color LED display for machine status.
Specification
| Model: | HS-BF330 | ||||
| Voltage: | AC220V,50/60Hz | ||||
| PCB Dimension: | L(50*50)-(450*330)mm | ||||
| Air supply: | 4-6 bar,max 15L/min | ||||
| Transport height: | 900±20(mm) | ||||
| Transport Direction: | L-R or R-L (optional) | ||||
| PCB thickness: | min 0.46mm | ||||
| Up/down pitches: | 1-4(10mm step) | ||||
| Store Capacity | 25pcs or customized | ||||
| Cycle time | Around 15 seconds | ||||
| Communication | SMEMA | ||||
| Optional | Fan, observation window | ||||
| Certification | CE | ||||
| Machine Dimension: | 600*1150*1560mm | ||||
| Gross Weight: | 280kg | ||||
We have professional technicians & sales,relies on high-tech and tries our best tosupply high efficient and reliable board handling to our customers. At the same timeour experienced engineering team always grasps smart factory's developing direction,updates the products and technical according to the market demand, pursuit to makemore automation and cost-effective product all the time, we also do the OEM basedon different needs of our customer.
