| Brand Name: | HSTECH |
| Model Number: | HS-C510F |
| MOQ: | 1set |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 pcs per month |

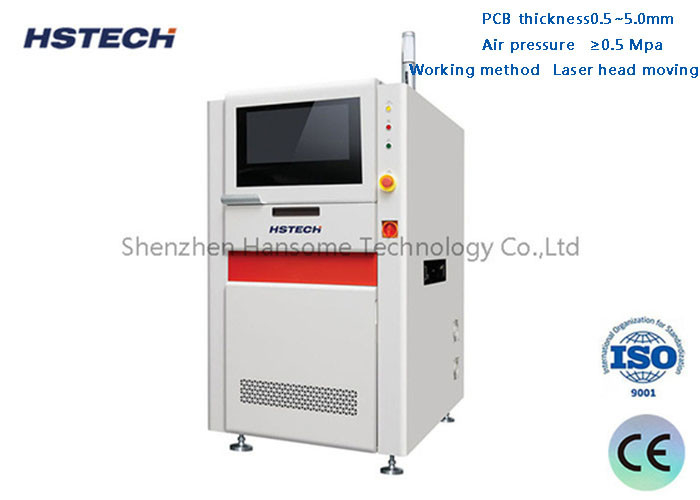

Touch Screen Inline CO2 PCB Laser Marking Machine with SMEMA
Introduction
It is a laser marking device for printed circuit board (PCB) production lines, which uses carbon dioxide laser technology to mark the PCB surface with high precision.
Application scenarios
Electronic manufacturing:
Widely used in the production line of electronic products to mark product information, serial numbers and production dates.
Automotive industry:
Mark important information in automotive electronic components to improve traceability and management efficiency.
Medical equipment:
Mark on the PCB of medical equipment to ensure product compliance and traceability.
Consumer electronics:
PCB marking for consumer electronics such as smartphones and home appliances.
Advantages
Improve production efficiency:
Fast marking reduces the downtime of the production line and improves overall production efficiency.
Reduce costs:
Reduce the use of labels and other identification materials, and reduce production costs.
Flexibility:
The marking content can be quickly changed as needed to adapt to the production of different products.
Environmental protection:
Laser marking does not use chemical ink and meets environmental protection requirements.
Features:
1, CCD Mark point location
2, CCD inline barcode reading
3, CCD barcode quality analysis
4, X Y servo driver, accuracy±0.02mm
Specification:
| Model | HS-C510F |
| Working method | Laser head moving |
| Leaser brand | SYNRAD CO2(America brand) |
| FIducial location | CCD+Mark positioning |
| Inline reading | Camera inline reading |
| PCB thickness | 0.5~5.0mm |
| PCB dimension | 50*50~510*460mm |
| Transpoting height | 900±20mm |
| Transportation direction | L-R/R-L |
| Width adjustment | Automatic |
| XY control system | PC+board card+servo motor |
| XY control accuracy | ±0.02mm |
| Wrong material recognition | Nagative board/Reverse/wrong recognition |
| Bad mark recognition |
Auto recognition bad mark, wont mark bad marks |
| Anti recode | Supported |
| Control system | Win7+self developed system |
| Power supply | Single phase AC 220V 16A 50/60Hz |
| Air pressure | ≥0.5 Mpa |
| Dimension | W1000*L1600*H1700 (mm) |
| System import | SHOP FLOW MES IMS SFIS,etc |
| Dimension | W1000*L1600*H1700 (mm) |
| Weight | 700 KG |
