| Brand Name: | HSTECH |
| Model Number: | HS-CVN350 |
| MOQ: | 1set |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |

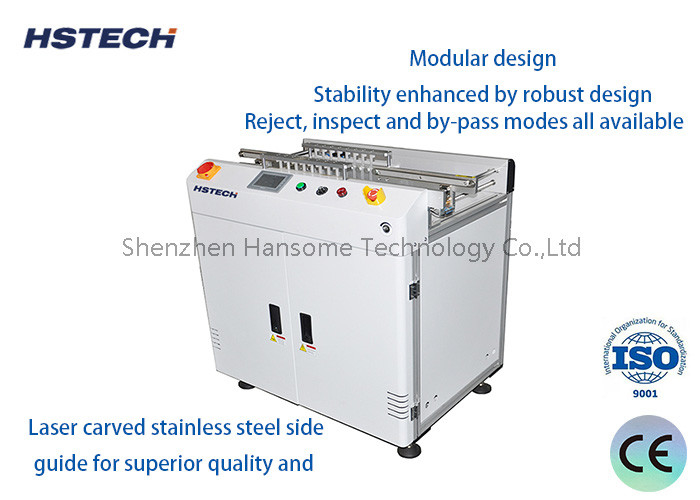

SMEMA Compatible Variable Speed Control PCB Reject Conveyor
Introduce:
This unit provide the OK and NG board selection function on the smt production line. It can be used when visual inspection of PCBs required. PCBs will continue to run, thus without interrupting the normal PCBs flow.
Features:
1. Reject, inspect and by-pass modes all available.
2. Modular design.
3. Stability enhanced by robust design.
4. Laser carved stainless steel side guide for superior quality and durability.
5. Ergonomic design arm rest.
6. Smooth and parallel width adjustment(lead screw).
7. Different lengths available upon request.
8. Variable speed control.
9.SMEMA compatible.
Specification:
| Model | HS-CVN350 | HS-CVN460 |
| Efficient PCB length | 50*50~450*350mm | 50*50~550*460mm |
| Machine dimension | 1000*690*930mm | 1000*800*930mm |
| Weight | 70kg | 90kg |
| Transport height | 910±20mm |
| Transportation direction | L~R, or R~L(optional) |
| Transporting speed | 0.5~20 m/min or specify |
| Power supply | AC100-230V,50/60Hz,single phase |
| Power consumption | 100VA max |
| Air pressure | 4-6bar |
| Air consumption | Max 10L/min |
| Communication | SMEMA |
product details:
