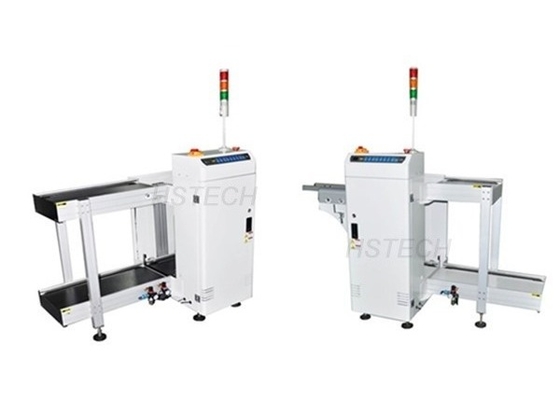

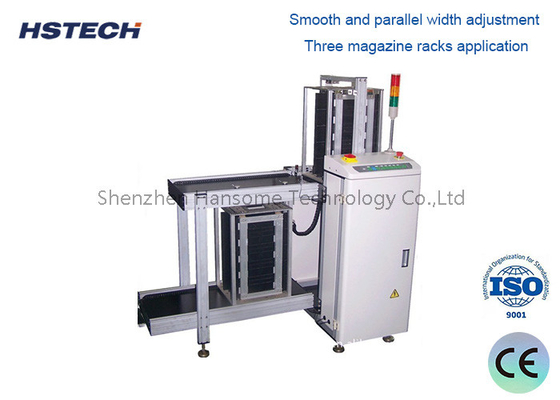

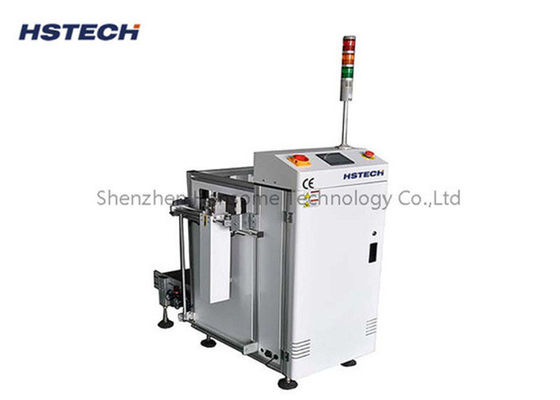

Panasonic PLC PCB Loader for the start of SMT Prouction Line
Application
This machine is used for the start of SMT production line, by pusing the pcbs out of the magazine to the conveyor of downstream machine.
A PCB (Printed Circuit Board) loader is a crucial piece of equipment in the PCB assembly process. It is designed to automatically load unpopulated PCBs onto a production line or into a machine, such as a pick-and-place machine or soldering system.
Features
1, True color touch screen control
2, Mitsubishi PLC
3, Magazine capacity: top 1, bottom 1, or customized
4, Selective pitch: 10mm,20mm,30mm,40mm
5, PCB transport direction: L - R, or R - L,optional
6, Manual/Automatic run mode selection
7, Front rail fixed or rear rail fixed,optional
8, Standard height for SMT application(920±20mm)
9, Tower light display
10, SMEMA signal
Specification
| Model | HS-250LD | HS-330LD | HS-390LD | HS-460LD |
| Voltage | AC110V/220V,50/60Hz,single phase,max 300A | |||
| PCB dimension | (50*50)~(350*250) | (50*50)~(455*330) | (50*50)~(530*390) | (50*50)~(530*460) |
| Magazine dimension | 355*320*565 | 460*400*565 | 535*460*565 | 535*530*565 |
| Air supply | 0.4~0.6Mpa | |||
| Transport height | 920±20(mm) standard | |||
| Loading time | 6 sec | |||
| Magazine replace time | around 20 secs | |||
| Transport direction | L to R, or R to L,optional | |||
| PCB thickness | Min 0.4mm | |||
| Pitches | 1-4(10mm step) | |||
| Communication | SMEMA | |||
| Machine dimension | 1100*780*1200 | 1400*860*1200 | 1500*920*1200 | 1600*1120*1200 |
| Weight | Approx 140kg | Approx 180kg | Approx 220kg | Approx 230kg |
Applications
Manufacturing Lines: Used in electronics manufacturing facilities where PCBs are assembled, tested, and soldered.
Prototyping: Helpful in laboratories or small-scale production environments for handling small quantities of PCBs.
Benefits
Improved Production Efficiency: Reduces downtime associated with manual loading, allowing for a smoother workflow.
Consistency: Provides a consistent and reliable method of loading PCBs, reducing the risk of damage or misalignment.
Labor Savings: Minimizes the need for manual labor, allowing workers to focus on other critical tasks.
