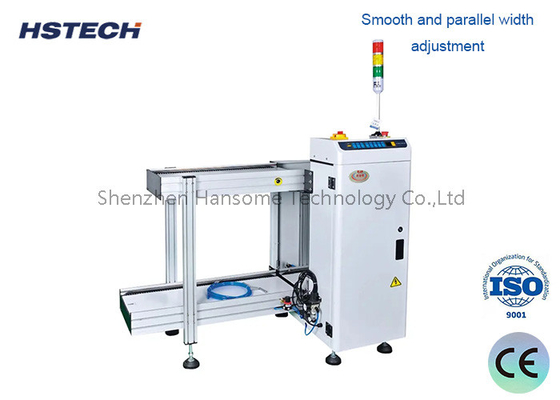

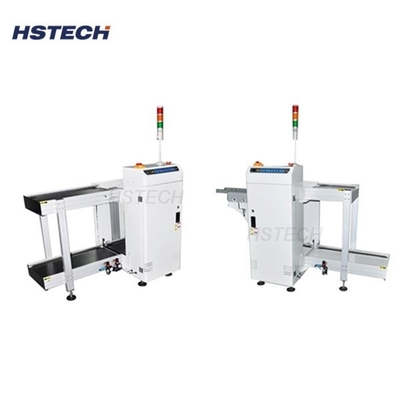

True Color Touch Screen Control PCB Loader with MITSUBISHI
Application
This machine is used for the start of SMT production line, by pusing the pcbs out of the magazine to the conveyor of downstream machine.
Specification
| Model | HS-250LD | HS-330LD | HS-390LD | HS-460LD |
| Voltage | AC110V/220V,50/60Hz,single phase,max 300A | |||
| PCB dimension | (50*50)~(350*250) | (50*50)~(455*330) | (50*50)~(530*390) | (50*50)~(530*460) |
| Magazine dimension | 355*320*565 | 460*400*565 | 535*460*565 | 535*530*565 |
| Air supply | 0.4~0.6Mpa | |||
| Transport height | 920±20(mm) standard | |||
| Loading time | 6 sec | |||
| Magazine replace time | around 20 secs | |||
| Transport direction | L to R, or R to L,optional | |||
| PCB thickness | Min 0.4mm | |||
| Pitches | 1-4(10mm step) | |||
| Communication | SMEMA | |||
| Machine dimension | 1100*780*1200 | 1400*860*1200 | 1500*920*1200 | 1600*1120*1200 |
| Weight | Approx 140kg | Approx 180kg | Approx 220kg | Approx 230kg |
Features
1, True color touch screen control
2, Mitsubishi PLC
3, Magazine capacity: top 1, bottom 1, or customized
4, Selective pitch: 10mm,20mm,30mm,40mm
5, PCB transport direction: L - R, or R - L,optional
6, Manual/Automatic run mode selection
7, Front rail fixed or rear rail fixed,optional
8, Standard height for SMT application(920±20mm)
9, Tower light display
10, SMEMA signal
Application scenarios
Electronic manufacturing:
Widely used in the production line of electronic products, especially in the loading link before the placement machine and welding machine.
Efficient production:
Reduce labor costs and improve production efficiency in a high-volume and efficient production environment.
Multi-variety small batch production:
Suitable for production lines that need to quickly switch between different types of PCBs.
Selection points
Production capacity: Select the appropriate loading speed and capacity according to production needs.
Equipment compatibility: Ensure compatibility with existing production equipment to achieve a smooth production process.
Ease of operation: Select equipment that is easy to operate and maintain to reduce training costs
