| Brand Name: | HSTECH |
| Model Number: | HS-GSE |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 50 sets per month |

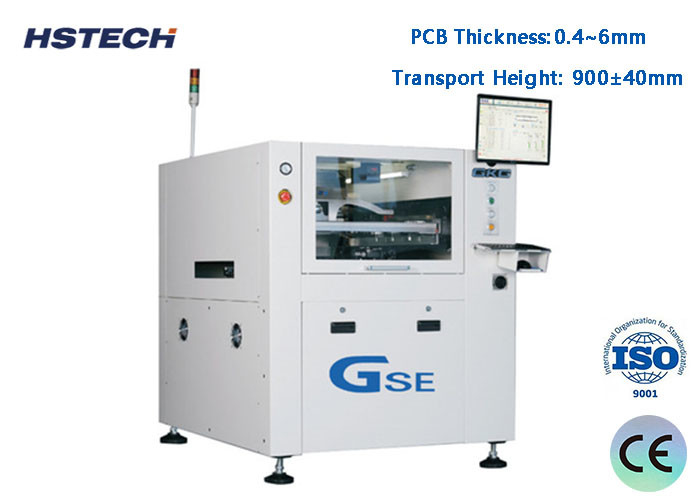

Schneider Touch Screen Automatic Solder Paste Printer for SMT Large-Scale
Introduction
GLE Automatic solder paste printing machine is a high-end machine for SMT large-scale applications. The width of Gt-S is only 2830mm. It can perfectly meet the printing process requirements of 01005,0.3pitch and other fine spacing, it's high precision and high speed.
Features
1, GKG special adjustment jacking platform. Stable and easy to adjust, it can quicklyadjust the pin jacking height of PCB with different thickness.
| Model | GSE |
| Stencil size | 370x370mm(min size) |
| 737x737mm(max size) | |
| 20-40mm(thickness) | |
| Max PCB Size | 400x340mm |
| Min PCB size | 50x50mm |
| PCB thickness | 0.4-6mm |
| PCB warpage | max 1% PCB diagonal |
| Transport height | 900±40mm |
| Transport direction | L-R,R-L |
| Transport speed | max 1500mm/s, can be adjustment |
| Transport method | One stage |
| WIdth adjustment | automatic |
| I/O interface | SMEMA |
| PCB positioning (support method) | Magnetic pin/support block/up-down table |
| PCB clamping system | Patented over the top clamping/side clamping |
| Print head | Two independent motorised printheads |
| Squeegee Pressure | 0.5~10Kg (Program Control) |
| Print Speed | 6-200mm/sec |
| Print Mode | One /Twice |
| Squeegee Type | Rubber /steel Squeegee Blade(Angle 45°/55°/60°) |
| Cleaning System | Ireinforced vacuum absorption ,dry ,wet, vacuum three modes |
| CCD FOV | 8x6mm |
| Machine adjust range | X: ± 3mm, Y:± 7 mm , θ:± 2° |
| Vision | Look Up/Down Optics Structure/CCD/Geometry Pattern-match |
Whole Machine Specification
| Repeat Position Accuracy | ±0.01mm |
| Printing Accuracy | ±0.025mm |
| Cycle Time | ＜8 Sec |
| Product Changeover | old:<3 mins,new:<5 mins |
| Air supply | 4~6 kgf/cm |
| Power supply | AC:220±10%,50/60HZ, 2.5KW |
| Control method | PC |
| Operation system | Windows XP/Win7 |
| Machine Dimensions | 1158(L) x 1362(W) x 1463 (H)mm |
| Machine Weight | Approx: around 1000Kg |
