| Brand Name: | HSTECH |
| Model Number: | NS-600 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

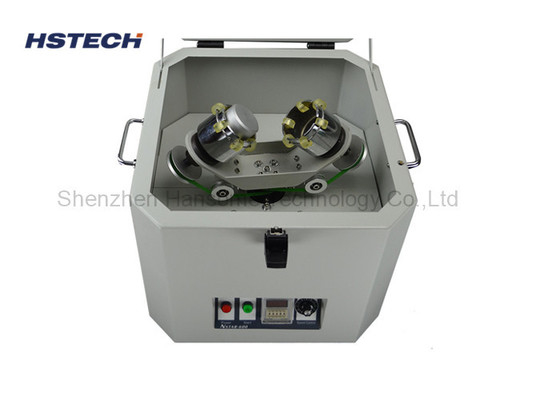

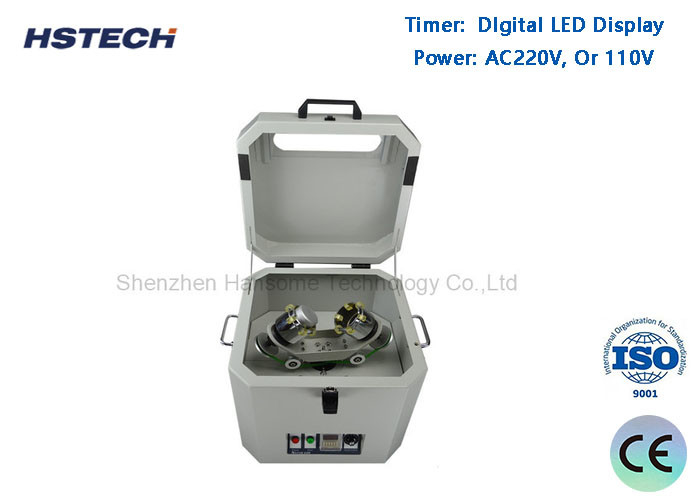

DIgital LED Display Automatic Solder Paste Mixing Machine
Application
This machine Slope efficiently and evenly mixes the solder pasteto a liquid state. It helps to achieve better resultsof stencil orienting and reflowing process. The use of the mixer also reduces the chances of absorbing air moisture as it is no longer necessary to remove the lid of the solder paste jar before the paste is actually usedin the production.
Features
| Model: | NSTAR-600 | |||
| Wattage: | 60W | |||
| Power: | AC220V, 50Hz | |||
| Roating speed: | Primary rotating:1400RPM;Sencond rotating:400RPM | |||
| Working Capacity: | 500g*2jar; | |||
| Tin Pot's Size: | M diameterΦ60-Φ67standard one S diameterΦ53-Φ60(for choose, please contact us ) L diameterΦ67-Φ74(for choose, please contact us) |
|||
| Time Setting: | 0.1～9.9mins, adjust0.1min per time; 10～30mins, adjust1.0min per time |
|||
| Display & Caution: | LED digital display,light blink and buzzer warning | |||
| Machine Demension: | 410*410*490mm(W*D*H) | |||
| Packing Demension: | 420*420*500mm(W*D*H) | |||
| Net/Gross Weight: | 40KG/45KG | |||
