| Brand Name: | GKG |
| Model Number: | G5 |
| MOQ: | 1 set |
| Price: | Negotiation |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 100 sets per month |

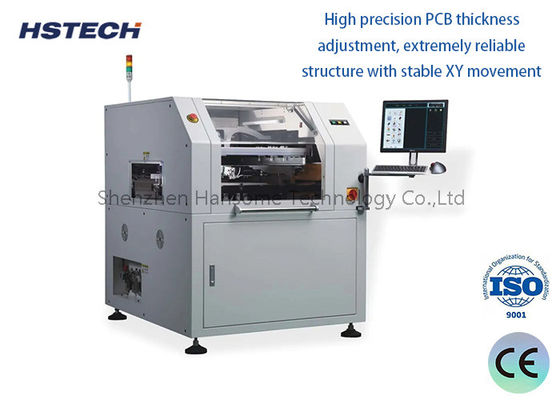

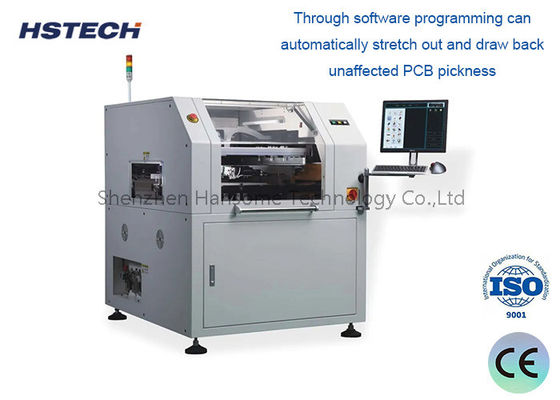

SMT Paste Printer with Magnetic Pin/Support Block & R-L Transport
Specification
| Model | G5 |
| Stencil size | 370x370mm(min size) |
| 737x737mm(max size) | |
| 20-40mm(thickness) | |
| Max PCB Size | 400x340mm |
| Min PCB size | 50x50mm |
| PCB thickness | 0.4-6mm |
| PCB warpage | max 1% PCB diagonal |
| Transport height | 900±40mm |
| Transport direction | L-R,R-L |
| Transport speed | max 1500mm/s, can be adjustment |
| Transport method | One stage |
| WIdth adjustment | automatic |
| I/O interface | SMEMA |
| PCB positioning (support method) | Magnetic pin/support block/up-down table |
| PCB clamping system | Patented over the top clamping/side clamping |
| Print head | Two independent motorised printheads |
Squeegee Pressure | 0.5~10Kg (Program Control) |
Print Speed | 6-200mm/sec |
Print Mode | One /Twice |
Squeegee Type | Rubber /steel Squeegee Blade(Angle 45°/55°/60°) |
Cleaning System | Ireinforced vacuum absorption ,dry ,wet, vacuum three modes |
CCD FOV | 8x6mm |
| Machine adjust range | X: ± 3mm, Y:± 7 mm , θ:± 2° |
| Vision | Look Up/Down Optics Structure/CCD/Geometry Pattern-match |
Whole Machine Specification
Repeat Position Accuracy | ±0.01mm |
Printing Accuracy | ±0.025mm |
Cycle Time | ＜8 Sec |
Product Changeover | old:<3 mins,new:<5 mins |
Air supply | 4~6 kgf/cm |
| Power supply | AC:220±10%,50/60HZ, 2.5KW |
| Control method | PC |
| Operation system | Windows XP/Win7 |
Machine Dimensions | 1140(L) x 1364(W) x 1404 (H)mm |
Machine Weight | Approx: around 1000Kg |
Feature
