| Brand Name: | HSTECH |
| Model Number: | HS-S5331R |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 pcs per month |

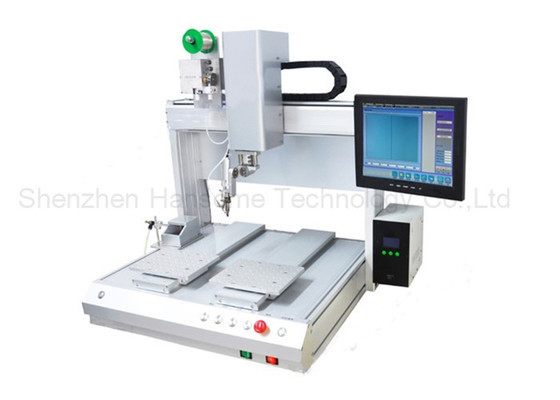

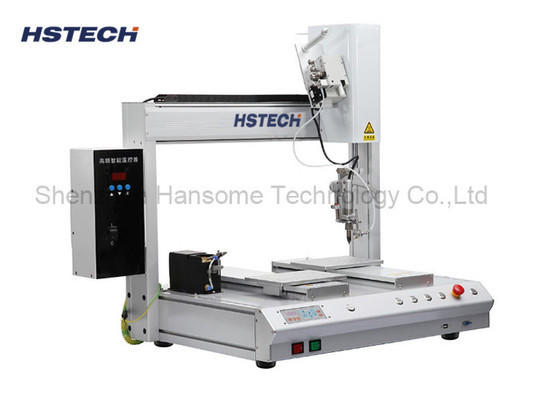

Two Workbenches Available for Switching System Auto Soldering Robot with Display

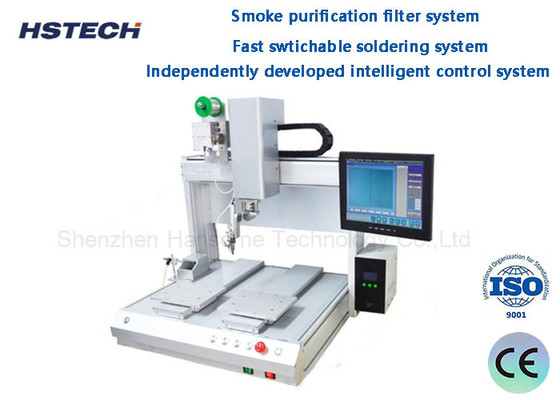

Features
1, With display which can fully watching the working process.
2, Two working station and fast swtichable soldering system, which can eliminate the time wasted on the assembly and dis-assembly fixtures.
3, Independently developed intelligent control system, it has powerful functions and simple operation interface.
4, With strong processlibrary, programming is simpler and faster.
5, Optional universal auxiliary fixture part.Fixtures can be formed on the site easily and quickly.
6, High quality and reliable mechanical structure,dont need maintenance.
7, High power heating controller ensures teh stability of continuous welding. Full time monitoring and control of temperature is processed by the robot control system.
8, Smoke purification filter system, extend the lifespan of the solder iron, improve the soldering quality.
9, The machine with automatic cleaning function, which can make the solder processing more stable, and extend the lifespan of the solderin iron.
Specification
| Model | HS-S5331R |
| Voltage | AC110V/220V,50/60Hz |
| X/Y1/Y2/Z working range | 500*300*300*100mm |
| R axis | 360 degree |
| X/Y1/Y2/Z moving speed | max 300mm/s |
| Driven system | Stepper motor,timing belt |
| Linear guide | Taiwan brand high precison guide |
| Repeat accuracy | ±0.02mm |
| Programing | Manual programmin with teach pendant |
| Control system | Control board |
| Program storage |
It can store one thousand sets of processing data and a single
processing file can occupy up to 3M storage space
(five thousand processing points)
|
| File storage space |
Handheld box 256M, offline card 32M, single processing file up to
3M storage space (100,000 processing points)
|
| Document support | CAD |
| Iron Tin cleaning | Air cleaning/pneumatic |
| External interface | USB+RS232 |
| Soldering method | Point/drag soldering |
| Weight | 60kg |
| Machine dimension |
680*585*800mm |
Application
The automatic soldering machine is mostly used in the electronics manufacturing industry. It is mainly used for process processes and solder processing that are difficult to achieve in reflow soldering and wave soldering.
It is especially suitable for mixed circuit boards, heat sensitive components, and sensitive devices in the SMT back-end process. Welding, widely used in PCB board welding line, charger plug welding, connector soldering, DC end tin, LED light strip connection and other fields.
Automatic soldering robots replace manual soldering to improve work efficiency and improve solder quality.Suitable for automotive electronics, digital, electronic products, LCD, circuit board and other production industries, connectors, RJ / network transformers, cable, FPCB welding, COF welding, computer motherboards, CABLE, speakers and motors Quality welding industry.
