| Brand Name: | HSTECH |
| Model Number: | HS-S331R |
| MOQ: | 1 set |
| Price: | 2900~4000USD/set |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 pcs per month |

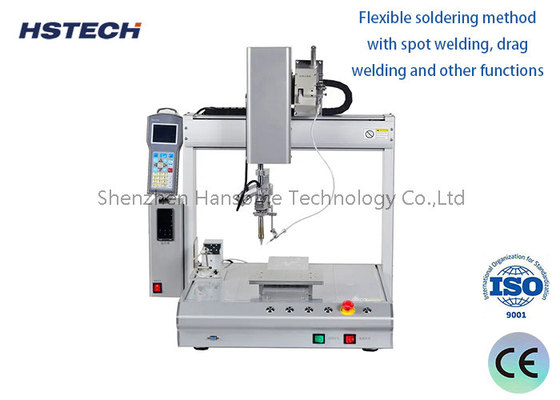

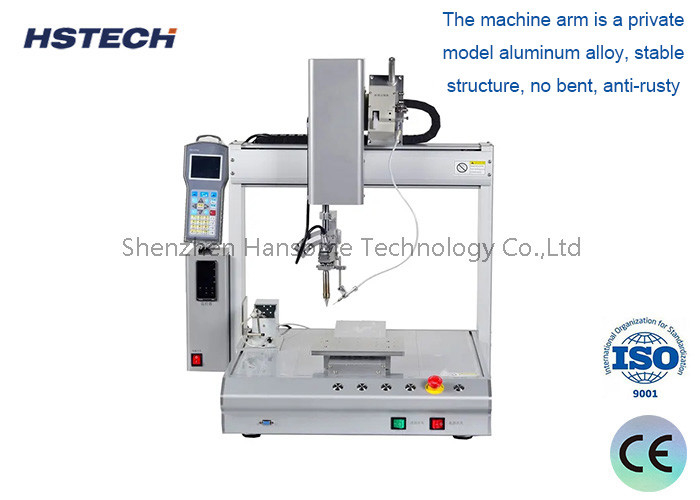

Manual Programming Windows Based 4 Axis Solder Robot
Introduction
This type of automatic welding machine is called a 4-axis automatic welding machine, with X, Y, Z, and 360 degree rotating axes. The machine is driven by air pressure and electricity, and each point is manually programmed through a teaching box before starting automatic welding. This machine is mainly used for adding tin or soldering cables on PCBA, saving more labor and improving production efficiency.
Features
1. 4-axis operation, X/Y/Z and R rotational movement, achieving multi angle welding.
2. The soldering iron does not contain nitrogen, making it very safe and environmentally friendly,
3. The soldering head can be adjusted in multiple directions to protect the PCB and components from damage.
4. Align the key position of the product with the iron head as the base point, press the enter key, and the program will automatically generate the point in the system, and then set the data for that point, etc.
5. Adopting high-precision stepper motors and synchronous belt drive systems, advanced motion control algorithms, effectively improving motion positioning accuracy and repeatability.
6. The machine has an automatic cleaning function, which can make soldering more stable and extend the service life of the soldering iron.
7. Handheld teaching pendant, easy to learn programming.
Specification
| Model | HS-S331R |
| Voltage | AC110V/220V,50/60Hz |
| X/Y/Z working range | 300*300*100mm |
| R axis | 360 degree |
| X/Y/Z moving speed | max 300mm/s |
| Driven system | Stepper motor,timing belt |
| Linear guide | Taiwan brand high precison guide |
| Repeat accuracy | ±0.02mm |
| Programing | Teach pendant |
| Control system | Control board |
| Program storage |
It can store one thousand sets of processing data and a single
processing file can occupy up to 3M storage space
(five thousand processing points)
|
| File storage space |
Handheld box 256M, offline card 32M, single processing file up to
3M storage space (100,000 processing points)
|
| Iron Tin cleaning | Air cleaning/pneumatic |
| External interface | USB+RS232 |
| Soldering method | Point/drag soldering |
| Weight | 48kg |
| Machine dimension |
520*585*800mm |
