| Brand Name: | HSTECH |
| Model Number: | HS-S331R |
| MOQ: | 1 set |
| Price: | 2900~4000USD/set |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 pcs per month |

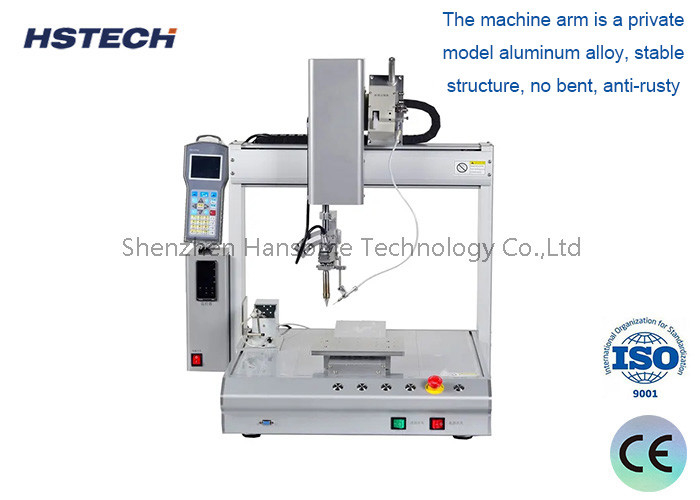

Manual Programming Windows Based 4 Axis Solder Robot
Introduction

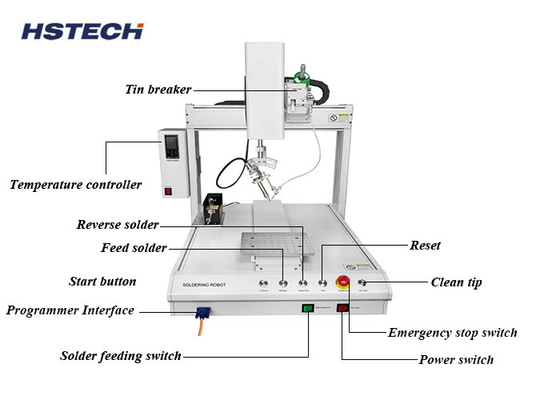

This automatic soldering machine we called it 4 axis automatic soldering machine, X,Y,Z and 360 degree Rotation axis, the machine adopt the air pressure and electricity driven, through the teachpant box for manual programing each points, then start the automatic soldering. This machine mostly use for add tins on the PCBA, or solder cables, save more labor and improve the production efficiency.
Features
1, 4 Axis working, X/Y/Z and R rotation moving, achieve many angle soldering purpose.
2, The soldering iron without nitrogen, very safety and environment protective,
3, The soldering head can be multi-directionally adjusted, which can protect the PCB and components from damage.
4, Use the Iron head as the base point to align the key position of the product, press the enter key, the program will automatically generate this point in the system,then setting the data about the point and so on.
5. Using high precision stepper motor and timing belt driven system, and advanced motion control algorithms to effectively improve motion positioning accuracy and repeatability.
6, The machine with automatic cleaning function, which can make the solder processing more stable, and extend the lifespan of the solderin iron.
7, With the handheld teaching pendant, the programming is simple and easy to learn.
Specification
| Model | HS-S331R |
| Voltage | AC110V/220V,50/60Hz |
| X/Y/Z working range | 300*300*100mm |
| R axis | 360 degree |
| X/Y/Z moving speed | max 300mm/s |
| Driven system | Stepper motor,timing belt |
| Linear guide | Taiwan brand high precison guide |
| Repeat accuracy | ±0.02mm |
| Programing | Teach pendant |
| Control system | Control board |
| Program storage |
It can store one thousand sets of processing data and a single
processing file can occupy up to 3M storage space
(five thousand processing points)
|
| File storage space |
Handheld box 256M, offline card 32M, single processing file up to
3M storage space (100,000 processing points)
|
| Iron Tin cleaning | Air cleaning/pneumatic |
| External interface | USB+RS232 |
| Soldering method | Point/drag soldering |
| Weight | 48kg |
| Machine dimension |
520*585*800mm |
SMT production line equipment
1. PCB loader: The PCB is placed in the rack and automatically fed to the suction machine.
2. Suction board machine: Automatically suction PCB onto the track and transfer it to the printing machine.
3. Printing machine: Print the solder paste or red glue on the laser steel completely onto the PCB.
4. High speed surface mount machine: Using the program edited by the equipment to mount components onto designated part positions, it can accommodate roll shaped parts with SOP below 28 pins, and its characteristic is fast installation speed.
5. Conveyor : a device for transferring PCB boards.
