Conductive/Non-Conductive SMT Embossed Carrier Tape for SMD Components
Introduction

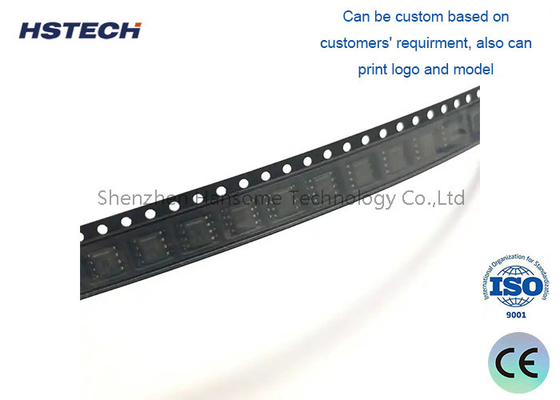

The embossed carrier tape are made of polystyrene, polycarbonate and PET. Carrier tapes with varying conductive and anti-static qualities to suit different components applications.The Carrier tape has pockets that are shaped to match the contours of the component to be carried. The width of carrier tape is between 8 and 104 mm, we also can custom for customers based on their demand.
Carrier tape specification
| Name | Carrier tape |
| Material | PS,PC,PET |
| Type | Conductive(antistatic)and non-conductive(non-antistatic) |
| Color | Black, Transparent |
| Width | 8-104mm |
| Thickness | 0.3-2.0mm,also customized for customers |
| Application | Smd components, electronic parts, hardware parts |
| Meter for per reel | According to the components |
| Cover tape | Cold sealing/hot sealing options |
The whole packing reels including the carrier tape, cover tape and external reell, customers use the manual or automatic tape and reel machine to pick the components into the carrier tape, at the same time use the cover tape to cover the components tightly to protect and fix the components in the tape, at last packing to a whole reel.
Carrier tape size and it matched cover tape
Each carrier tape has it matched cover tape, the cover tape has the cold sealing and hot sealing options during the components packing,also the cover tape has the ESD options. Below is the dimension of the carrier tape and it matched cover tape diagram.
| Carrier Tape(mm) | 8 | 12 | 16 | 24 | 32 | 44 | 56 | 72 | 88 | 104 |
| Cover Tape(mm) | 5.4 | 9.3 | 13.3 | 21.3 | 25.5 | 37.5 | 49.5 | 65.5 | 81.5 | 97.5 |

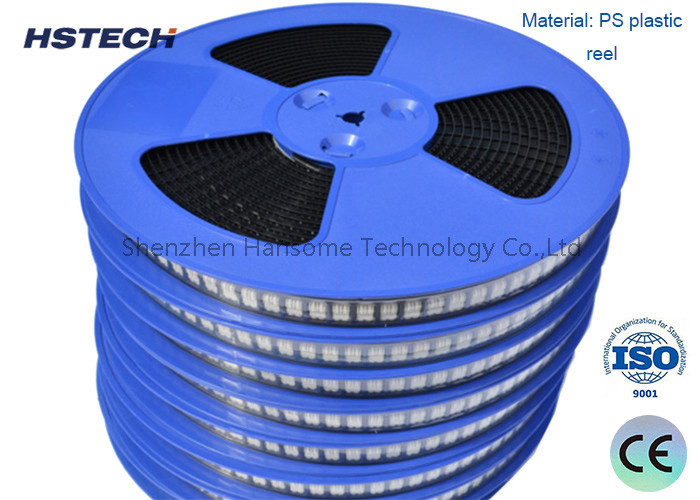

Reels
We also manufacture reels by injection moulding. They are made of polystyrene in different sizes and designs. We can also produce them in anti-static or conductive options under the requirements
