| Brand Name: | HSTECH |
| Model Number: | CT-03 |
| MOQ: | 200 meters |
| Price: | Negotiable |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 reels per month |

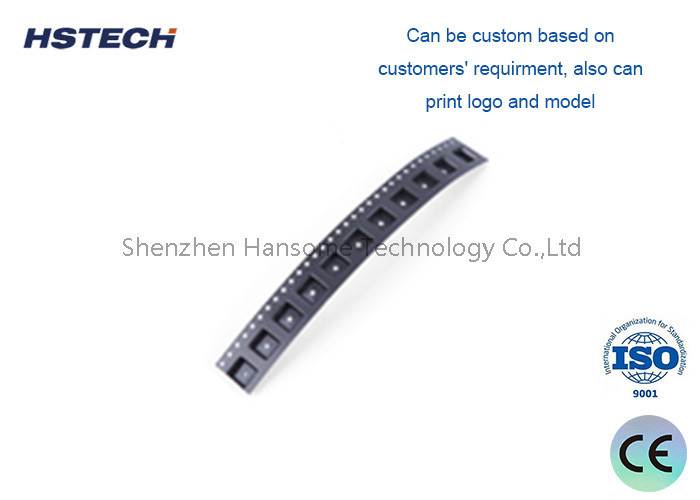

Conductive/Non-Conductive SMT Embossed Carrier Tape for SMD Components
Introduction
The embossed carrier tape are made of polystyrene, polycarbonate and PET. Carrier tapes with varying conductive and anti-static qualities to suit different components applications.The Carrier tape has pockets that are shaped to match the contours of the component to be carried. The width of carrier tape is between 8 and 104 mm, we also can custom for customers based on their demand.
Carrier tape size and it matched cover tape
Each carrier tape has it matched cover tape, the cover tape has the cold sealing and hot sealing options during the components packing,also the cover tape has the ESD options. Below is the dimension of the carrier tape and it matched cover tape diagram.
| Carrier Tape(mm) | 8 | 12 | 16 | 24 | 32 | 44 | 56 | 72 | 88 | 104 |
| Cover Tape(mm) | 5.4 | 9.3 | 13.3 | 21.3 | 25.5 | 37.5 | 49.5 | 65.5 | 81.5 | 97.5 |
Reels
We also manufacture reels by injection moulding. They are made of polystyrene in different sizes and designs. We can also produce them in anti-static or conductive options under the requirements
Application
This carrier tape is widely used in IC, capacitors, resistors, connectors, micro-transformers, inductors, electronic switches, diodes, transistors, LED chip, Low Power LEDs, Mid/High Power Packages, Domed Packages, LED Modules, Lenses, LED Die,crystals and other surface-mount components packaging, to meet the requirements of efficient, fast and miniaturized production of modern electronic products. Applicable to all belts, uniform density, consistent peel strength, anti-static function. Mainly used in connectors, chip capacitors, resistors, integrated blocks, chips can be used with PS, PC, PVC, PET material carrier tape.
We supply high quality embossed carrier tapes and custom carrier tapes according to customers's demand.
If you need a carrier tape to allow parts to be placed and sealed to go onto a pick and place system, then we have options for you.
We have not only SMT machines and equipment, but also many machine parts.We are supplier of smt machine parts and equipment. such as Feeder,Nozzle,PCB board turnover cart,SMT grease,Solder paste mixer,SMD counter,Laser Sensor,Filter,KIC thermal profiler,Servo Motor and so on.
At Shenzhen Hansome Technology, we strive for excellence in delivering cutting-edge technology and exceptional customer service. We look forward to the opportunity to serve your business needs. Should you have any questions or require further information, please do not hesitate to contact us!
