Desktop SMT Soldering Robot for PCB Assemblying with Rotation Axis

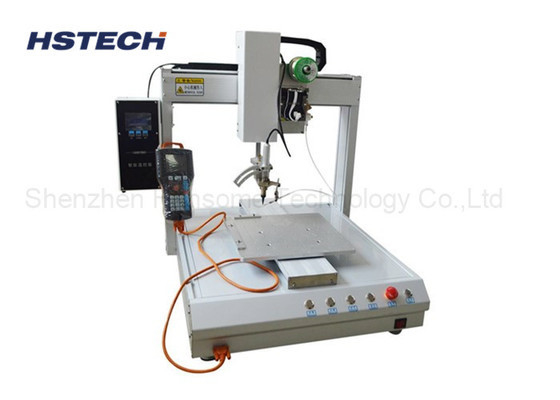

Introduction
This desktop SMT Automatic soldering robot is a PCB soldering machine, manual setting the program for every soldering points, auto feeding the solder wire, with temperature control till the specific temperature, the solder tin will melt the solder wire to finish the soldering process.
The operator only make the customized fixtures to fix the product, after set the program, then the machine will work automatically. Available for spot welding, drag welding, curve welding, circle welding,irregular curve continuous welding.
Features

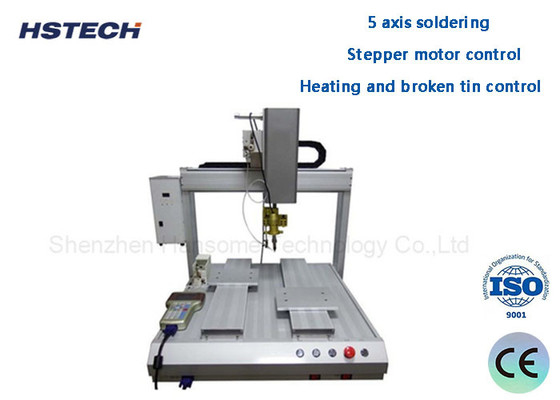

1, 5 axis soldering.
2, Stepper motor control.
3, Heating and broken tin control.
4, High quality Linear guide, ensure the moving smooth and flat.
5, Flexible soldering, available for spot soldering, drag soldering and other functions.
6, The machine arm is a private model aluminum alloy, stable structure, no bent, anti-rusty.
7, Teach pendant programming, can save max 99 groups programs.
8, Smoke purification filter system, extend the lifespan of the solder iron, improve the soldering quality.
9, The machine with automatic cleaning function, which can make the solder processing more stable, and extend the lifespan of the solderin iron.

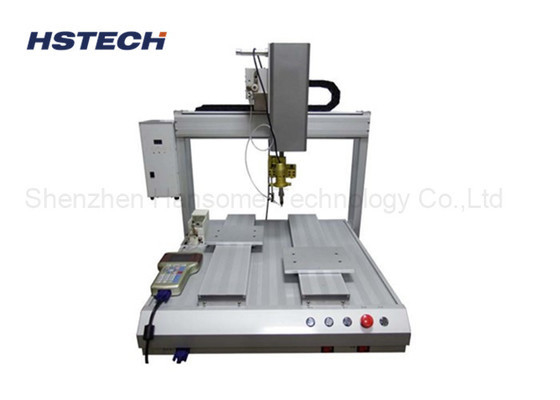

Specification
| Model | HS-S5331R |
| Voltage | AC110V/220V,50/60Hz |
| X/Y1/Y2/Z working range | 500*300*300*100mm |
| R axis | 360 degree |
| X/Y1/Y2/Z moving speed | max 300mm/s |
| Driven system | Stepper motor,timing belt |
| Linear guide | Taiwan brand high precison guide |
| Repeat accuracy | ±0.02mm |
| Programing | Manual programmin with teach pendant |
| Control system | Control board |
| Program storage |
It can store one thousand sets of processing data and a single
processing file can occupy up to 3M storage space
(five thousand processing points)
|
| File storage space |
Handheld box 256M, offline card 32M, single processing file up to
3M storage space (100,000 processing points)
|
| Document support | CAD |
| Iron Tin cleaning | Air cleaning/pneumatic |
| External interface | USB+RS232 |
| Soldering method | Point/drag soldering |
| Weight | 60kg |
| Machine dimension |
680*585*800mm |
Application
The automatic soldering machine is mostly used in the electronics manufacturing industry. It is mainly used for process processes and solder processing that are difficult to achieve in reflow soldering and wave soldering. It is especially suitable for mixed circuit boards, heat sensitive components, and sensitive devices in the SMT back-end process.
Welding, widely used in PCB board welding line, charger plug welding, connector soldering, DC end tin, LED light strip connection and other fields. Automatic soldering robots replace manual soldering to improve work efficiency and improve solder quality.Suitable for automotive electronics, digital, electronic products, LCD, circuit board and other production industries, connectors, RJ / network transformers, cable, FPCB welding, COF welding, computer motherboards, CABLE, speakers and motors Quality welding industry.
