| Brand Name: | HSTECH |
| Model Number: | HS-250LD |
| MOQ: | 1set |
| Price: | Negotiable |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |
Sheet Metal SMEMA Communication Interface PCB Loader Board Handling Equipment
Application

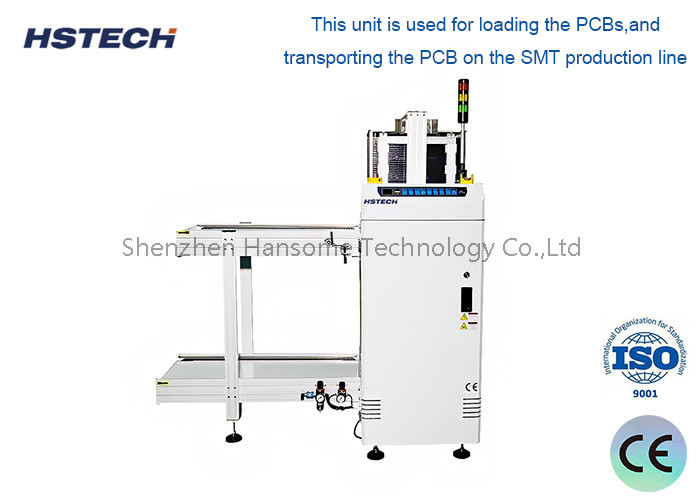

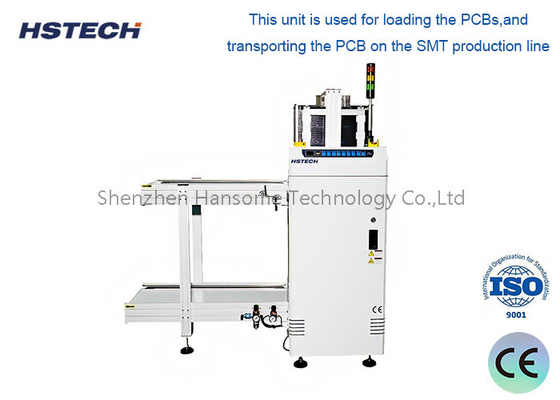

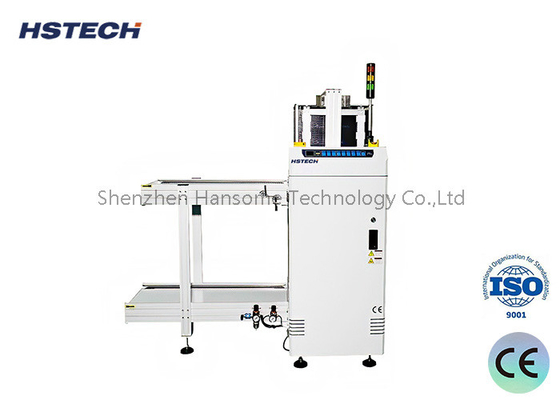

This machine is used for the start of SMT production line, by pusing the pcbs out of the magazine to the conveyor of downstream machine.
Specification
| Model | HS-250LD | HS-330LD | HS-390LD | HS-460LD |
| Voltage | AC110V/220V,50/60Hz,single phase,max 300A | |||
| PCB dimension | (50*50)~(350*250) | (50*50)~(455*330) | (50*50)~(530*390) | (50*50)~(530*460) |
| Magazine dimension | 355*320*565 | 460*400*565 | 535*460*565 | 535*530*565 |
| Air supply | 0.4~0.6Mpa | |||
| Transport height | 920±20(mm) standard | |||
| Loading time | 6 sec | |||
| Magazine replace time | around 20 secs | |||
| Transport direction | L to R, or R to L,optional | |||
| PCB thickness | Min 0.4mm | |||
| Pitches | 1-4(10mm step) | |||
| Communication | SMEMA | |||
| Machine dimension | 1100*780*1200 | 1400*860*1200 | 1500*920*1200 | 1600*1120*1200 |
| Weight | Approx 140kg | Approx 180kg | Approx 220kg |
Approx 230kg |
Shenzhen Hansome Technology Co.,Ltd(HSTECH)is a professional professional SMT board handlingequipment(Loader,Unloader, Buffer, Conveyor,etc)manufacturer. We are a high-tech enterprise with independent intellectual propertyrights,the company is mainly engaged in the research and development, productionand sales of SMT/THT production line board handling equipment.
We have professional technicians & sales,relies on high-tech and tries our best tosupply high efficient and reliable board handling to our customers. At the same timeour experienced engineering team always grasps smart factory's developing direction,updates the products and technical according to the market demand, pursuit to makemore automation and cost-effective product all the time, we also do the OEM basedon different needs of our customer.
